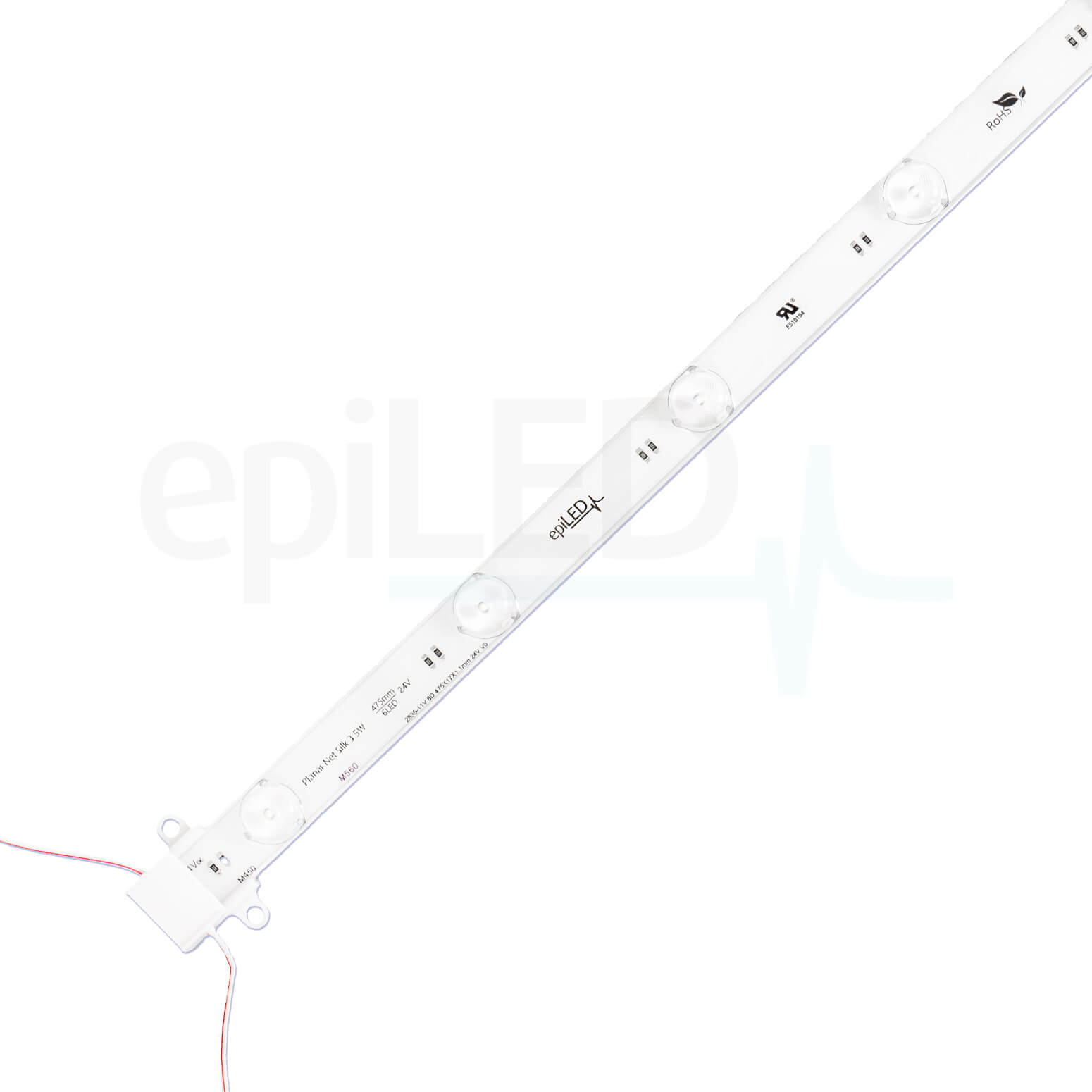

Planar Net Silk 3.5W
for 6-25 cm
 |
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATIONS
|
Nominal power usage per board |
3.5W |
|
Luminous flux |
605 lm |
|
Beam angle |
178° |
|
Current stabilization |
NO |
|
Input voltage |
24V DC |
|
Board dimensions (L x W x H) |
475 x 40 x 12 mm |
|
Cutting section |
n/a |
|
Maximum spacing (CC distance) |
200 ± 5 mm |
|
No. of boards per chain |
10 pcs |
|
Lifespan |
~50000 hours |
|
Operating temperature |
-25°C ÷ +50°C |
|
Storage temperature |
-40°C ÷ +85°C |
|
Colour rendering index |
≥82 |
|
IP rating |
IP65 |
|
Compliance with |
CE / UKCA / RoHS / WEEE / UL |
|
Warranty |
3 years |
COLOURS
|
Light colour |
CCT [K] |
Luminous flux [lm/pc] |
Luminous efficacy [lm/W] |
Energy class |
|---|---|---|---|---|
|
WH |
6500-7000 |
605 |
173 |
C |

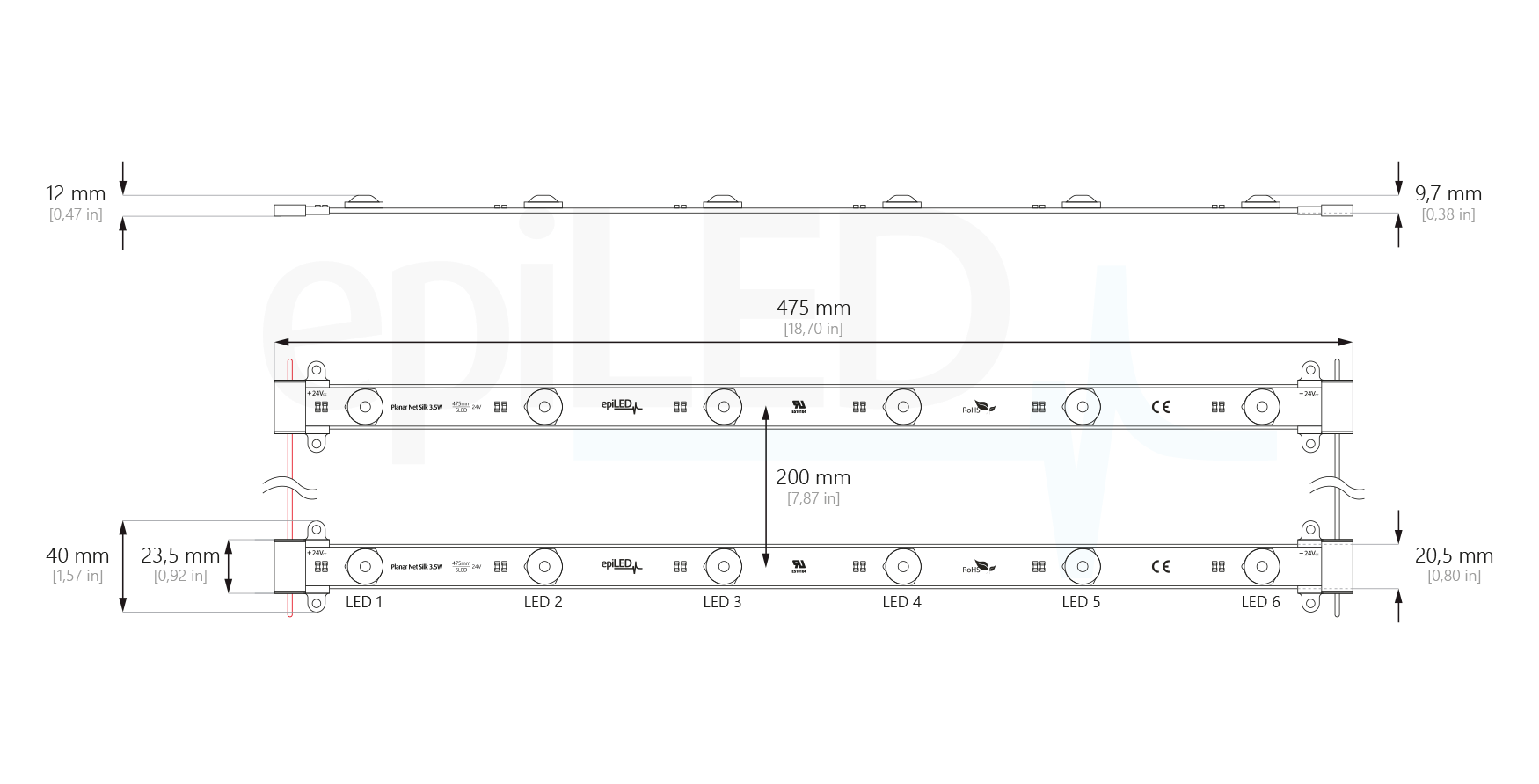

DIMENSIONS

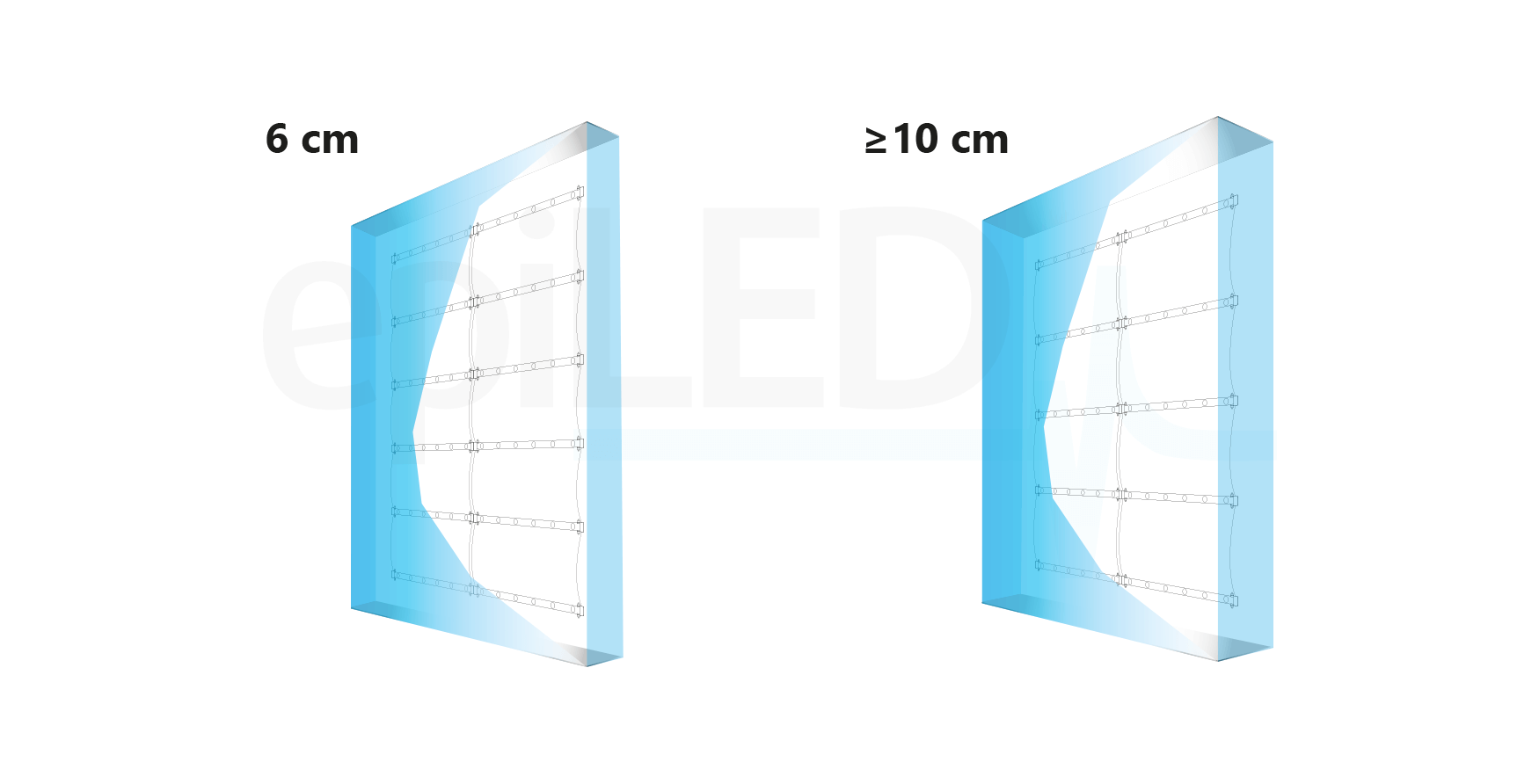

APPLICATION
best suited for lightboxes with a depth of 6-25 cm
|
Depth |
6 cm |
≥ 10 cm |
|---|---|---|
|
Area |
1 m2 |
1 m2 |
|
CC distance |
16 cm |
20 cm |
|
No. of boards |
12 pcs |
10 pcs |
|
Lumen output |
7260 lm |
6050 lm |
|
Power usage |
42W |
35W |
NOTE: the exact number of modules depends on the used materials and the effect we want to achieve.
