Revelis RVL-150-24

Power Supply Revelis logo Rated Power Output Voltage Warranty IP Rating

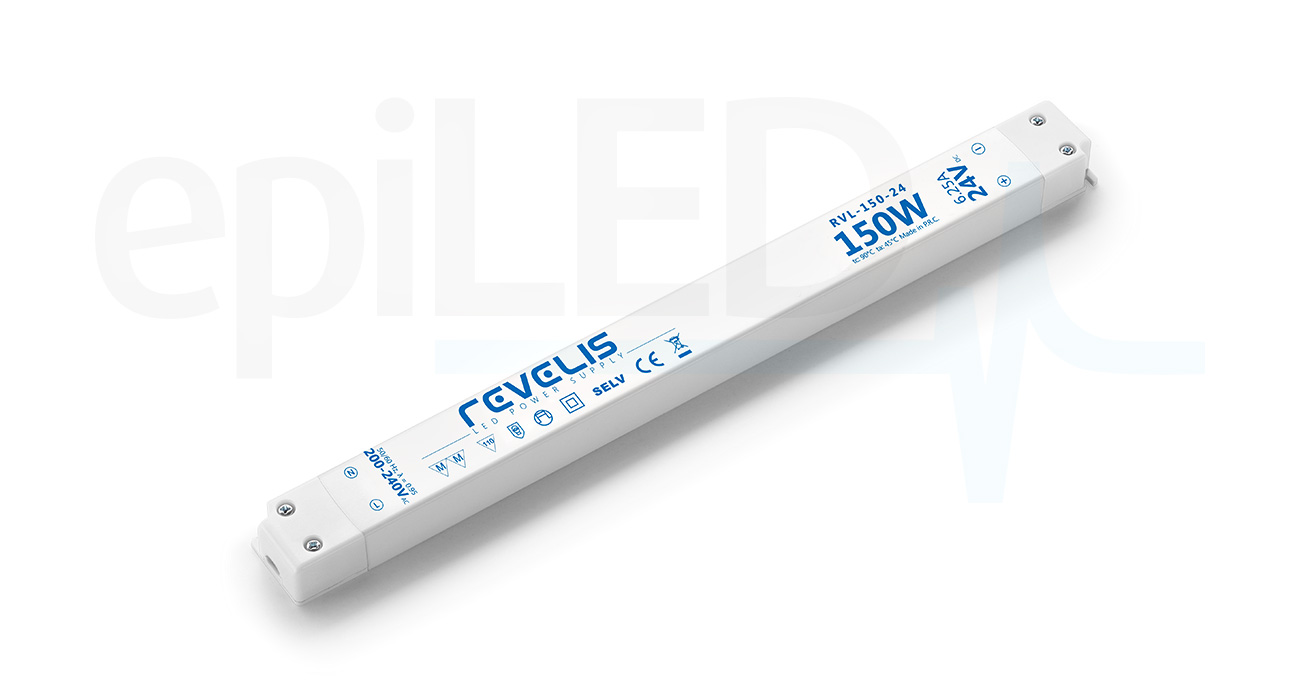

Super Slim Power Supply Revelis RVL-150-24

FEATURES

  • protections: short circuit / over load / over temperature
  • can be mounted on flammable surfaces, e.g. wood
  • wide range of input voltage: 180~264 V AC
  • cooling by free air convection
  • compliance with European standards and certificates
  • high reliability
  • dedicated to applications based on LED lighting used in the furniture and advertising industry
  • 5 years warranty

It is also possible to purchase a power supply with a cable including a plug. The length of the cable and the type of plug depends on your preferences. Please ask our sales department.

TECHNICAL SPECIFICATIONS

Output Voltage

24 V DC

Rated Current

6.25 A

Rated Power

150 W

Output Voltage Tolerance

± 5%

Input Voltage Range

180~264 V AC

Frequency Range

50 ~ 60 Hz

Efficienty

90%

AC Input Current

1 A / 230 V AC

Protection

Short circuit | Over load | Over temperature

Working temperature

-20°C ÷ +45°C

Working humidity

40 ~ 85%

Safety & EMC

EN61347-1, EN61347-2-13, EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2011/A1:2015

Dimensions

322.6 x 30.1 x 21.5 mm

Weight

0.26 kg
