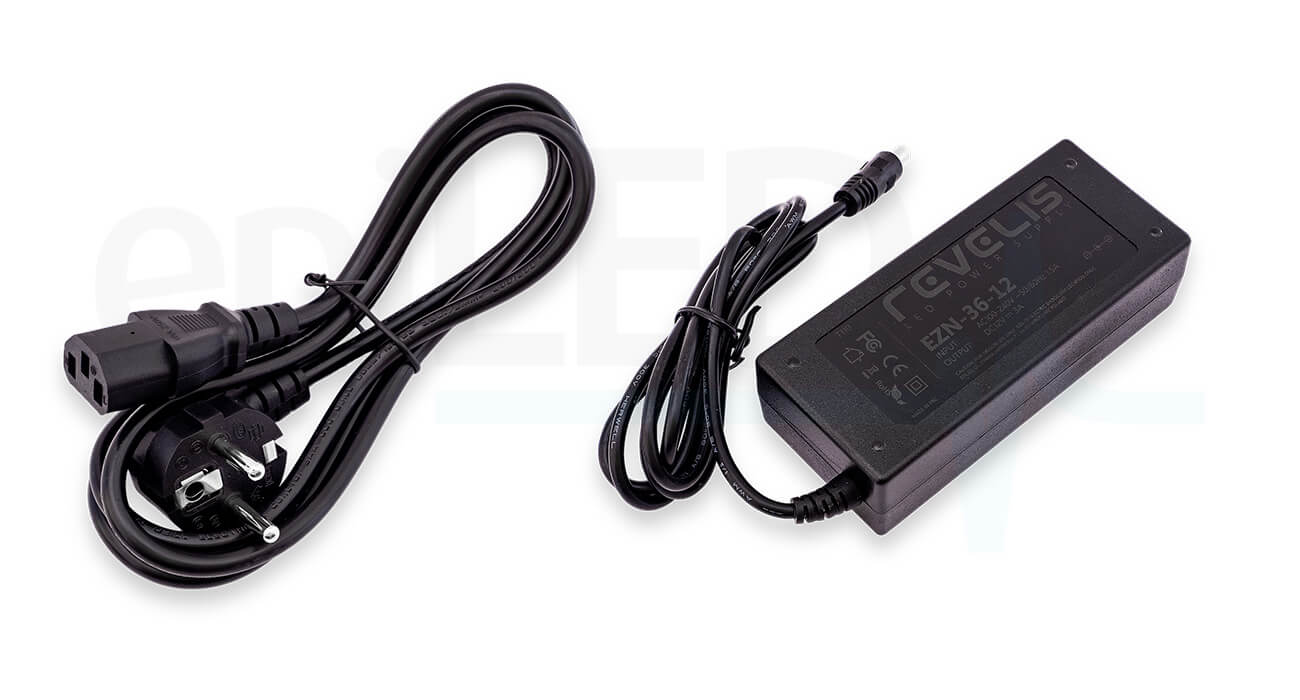

Revelis EZN-36-12
 |
 |
 |
 |
 |
FEATURES
|
|
|
|
|
|
|
TECHNICAL SPECIFICATIONS
|
Output Voltage |
12V DC |
|
Rated Current |
3 A |
|
Rated Power |
36 W |
|
Output Voltage Tolerance |
± 5% |
|
Input Voltage Range |
100~240V AC |
|
Frequency Range |
50~60 Hz |
|
Efficienty |
76% |
|
Inrush Current |
20 A |
|
Protection |
Short circuit | Overvoltage | Overload |
|
Working temperature |
-20°C ÷ +85°C |
|
Working humidity |
10 ~ 95% RH non-condensing |
|
Compliance with the LVD 2014/35/EU |
EN IEC 62368-1:2020-11 |
|
Compliance with the EMC 2014/30/EU |
EN 61000-3-3:2013-10/A1:2019-10, EN IEC 61000-3-2:2019-04, EN 55032:2015-09/A11:2020-07, EN 55035:2017-09 |
|
Compliance with the RoHS 3 2015/863 |
EN IEC 63000:2019-01 |
|
AC cable length |
H05VV-F, 1.5 m |
|
AC plug type |
EU + Type E |
|
DC cable length |
20 AWG, 1.2 m |
|
DC plug type |
5.5 x 2.1 |
|
Dimensions |
113.6 x 49.6 x 30.5 mm |
|
Weight |
0.36 kg |
|
IP Rating |
IP20 |
