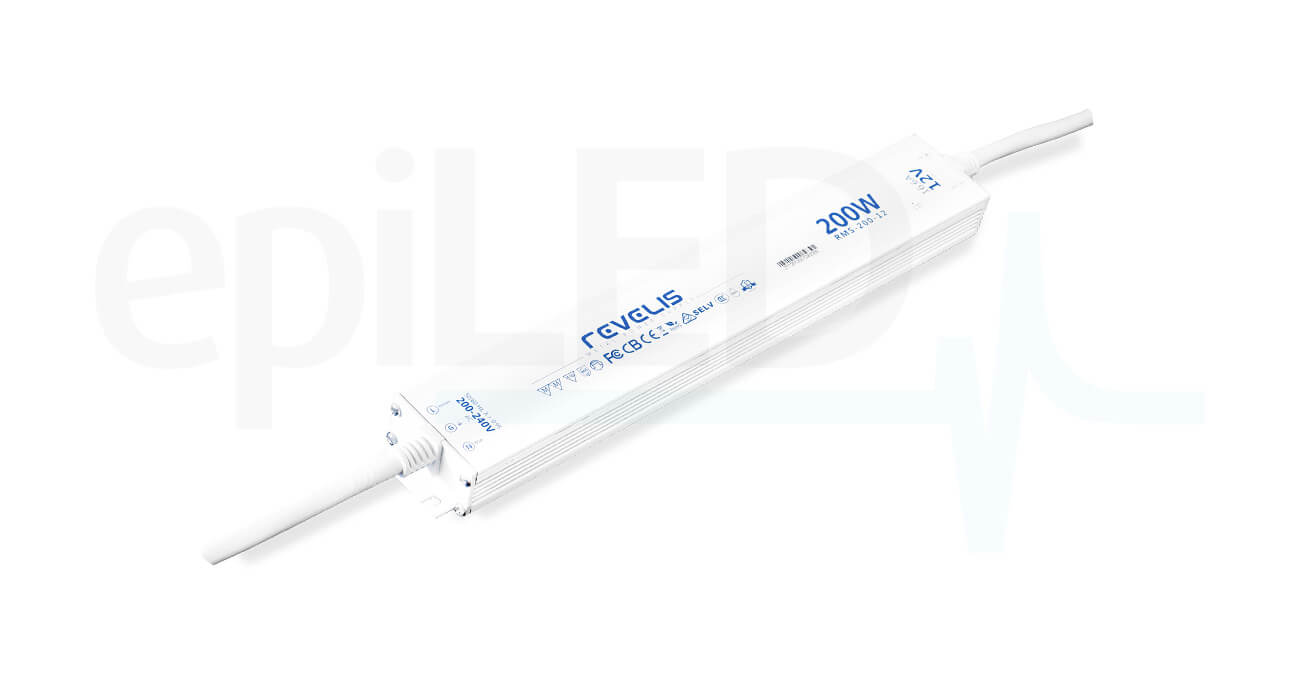

Revelis RMS-200-12
 |
 |
 |
 |
 |
FEATURES
|
|
|
|
|
|
|
|
TECHNICAL SPECIFICATIONS
|
Output Voltage |
12V DC |
|
Rated Current |
16.6 A |
|
Rated Power |
200 W |
|
Output Voltage Tolerance |
± 5% |
|
Input Voltage Range |
200~240V AC |
|
Frequency Range |
50~60 Hz |
|
Efficienty |
92% |
|
AC Input Current |
46 A @ 230V AC |
|
Protection |
Short circuit | Overvoltage | Overload | Over temperature |
|
Working temperature |
-25°C ÷ +50°C |
|
Working humidity |
10 ~ 95% RH non-condensing |
|
Compliance with the LVD 2014/35/EU |
EN 61347-1:2015-09, EN 61347-2-13:2015-04 |
|
Compliance with the EMC 2014/30/EU |
EN 61000-3-3:2013-10/A1:2019-10, EN IEC 61000-3-2:2019-04, EN 61547:2009, EN 55015:2013+A1 |
|
Compliance with the RoHS 3 2015/863 |
EN IEC 63000:2019-01 |
|
Dimensions |
256 x 45 x 23 mm |
|
Output cable length |
2 x 170 mm |
|
Weight |
0.5 kg |
|
IP Rating |
IP67 |
