Revelis RMS-100-12

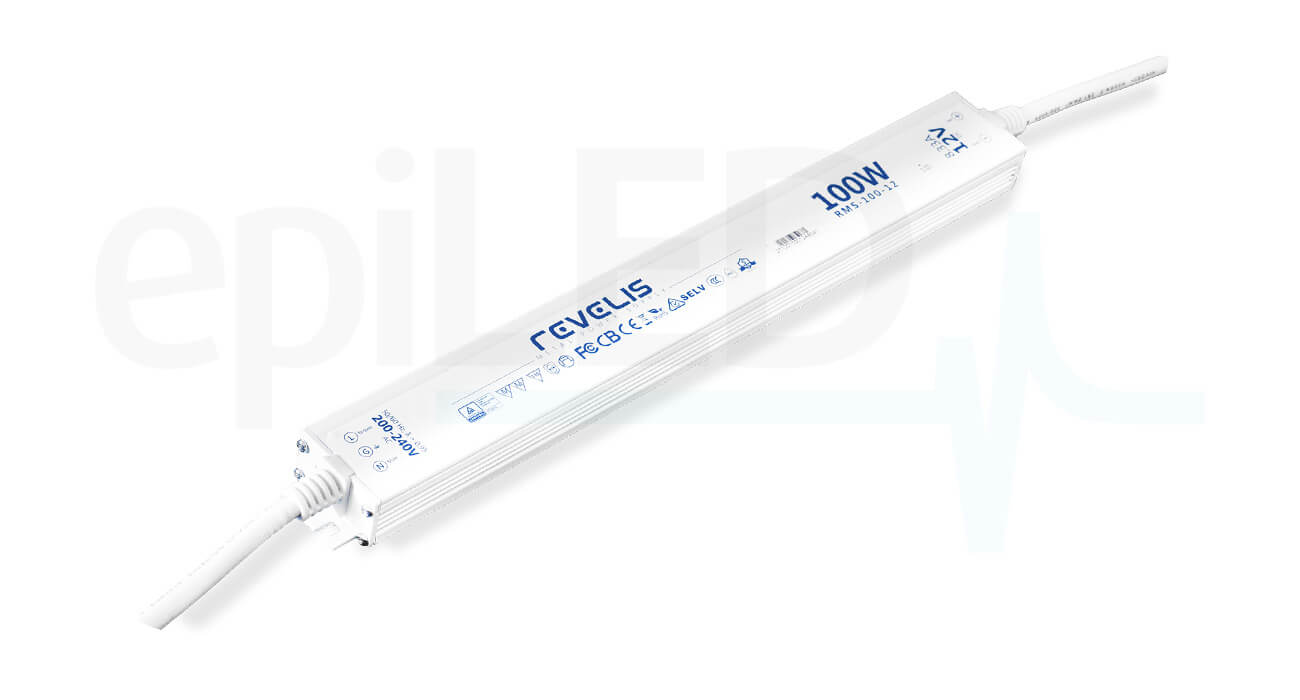

Metal Slim Power Supply Revelis RMS-100-12

FEATURES

protections: short circuit / overvoltage / overload

metal housing with IP67 level

can be mounted on flammable surfaces, e.g. wood

cooling by free air convection

compliance with European standards and certificates

high reliability

dedicated to applications based on LED lighting used in the furniture and advertising industry

5 years warranty

TECHNICAL SPECIFICATIONS

Output Voltage	12V DC
Rated Current	8.33 A
Rated Power	100 W
Output Voltage Tolerance	± 5%
Input Voltage Range	200~240V AC
Frequency Range	50~60 Hz
Efficienty	91%
AC Input Current	46 A
Protection	Short circuit \| Overvoltage \| Overload
Working temperature	-30°C ÷ +50°C
Working humidity	10 ~ 95% RH non-condensing
Compliance with the LVD 2014/35/EU	EN 61347-1:2015-09/A1:2021-06, EN 61347-2-13:2015-04/A1:2017-07, EN 62493:2015-11/A1:2023-03
Compliance with the EMC 2014/30/EU	EN 61000-3-3:2013-10/A1:2019-10, EN IEC 61000-3-2:2019-04/A1:2021-08, EN IEC 55015:2019-11/A11:2020-07, EN IEC 61547:2023-10
Compliance with the RoHS 3 2015/863	EN IEC 63000:2019-01
Dimensions	218 x 35 x 20 mm
Output cable length	2 x 180 mm
Weight	0.44 kg
IP Rating	IP67
