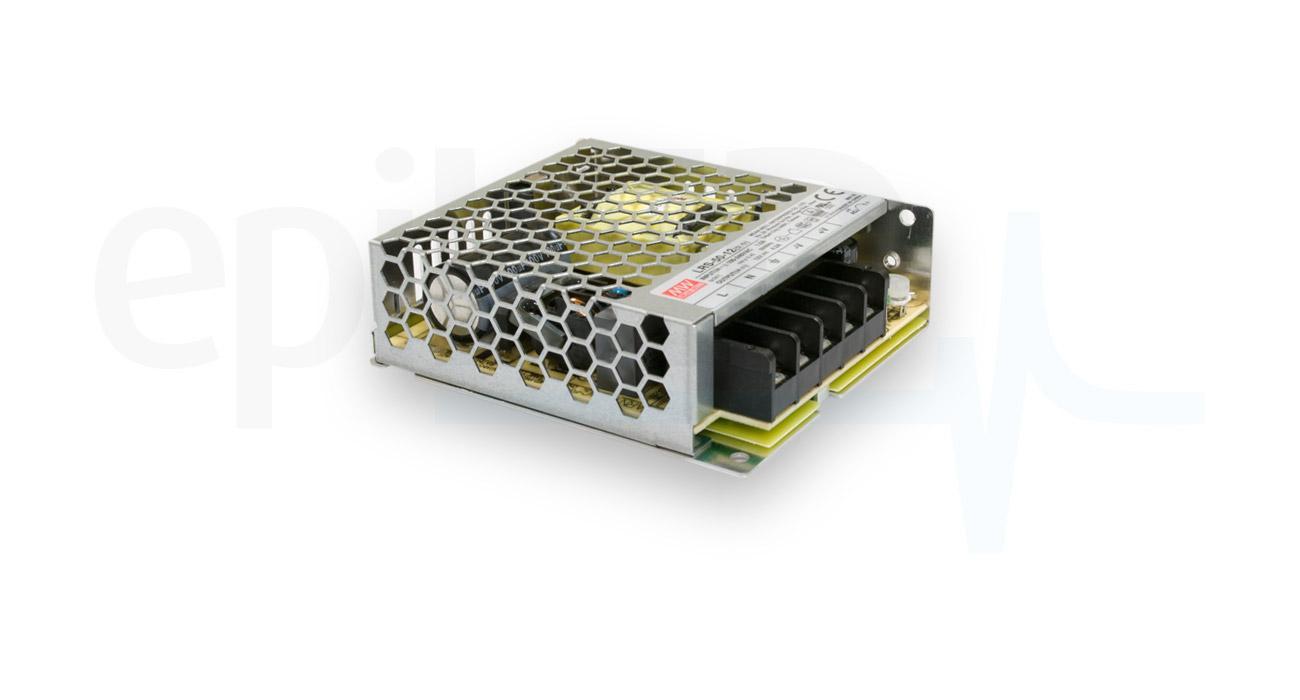

Mean Well LRS-50

FEATURES

protections: short circuit / over load / over voltage

100% full load burn-in test

cooling by free air convection

withstand 5G vibration test

ultra compact and 1U low profile

operating altitude up to 5000 meters

meet 4kV surge immunity level (IEC61000-4-5)

compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances

LED indicator for power on

3 years warranty

TECHNICAL SPECIFICATIONS

Output Voltage	12 V DC
Rated Current	4.2 A
Current Range	0 ~ 4.2 A
Rated Power	50.4 W
Output Voltage Tolerance	± 1.0%
Input Voltage Range	85 ~ 264 V AC \| 120 ~ 373 V DC
Frequency Range	47 ~ 63 Hz
Efficienty	86%
AC Input Current	0.95 A / 115 V AC \| 0.56 A / 230 V AC
Protection	Short circuit \| Over load \| Over voltage
Working temperature	-30°C ÷ +70°C
Working humidity	20 ~ 90% RH non-condensing
Safety & EMC	UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943 approved
Dimension	99 x 82 x 30 mm
Weight	0.23 kg

DOWNLOAD

DATA SHEET
