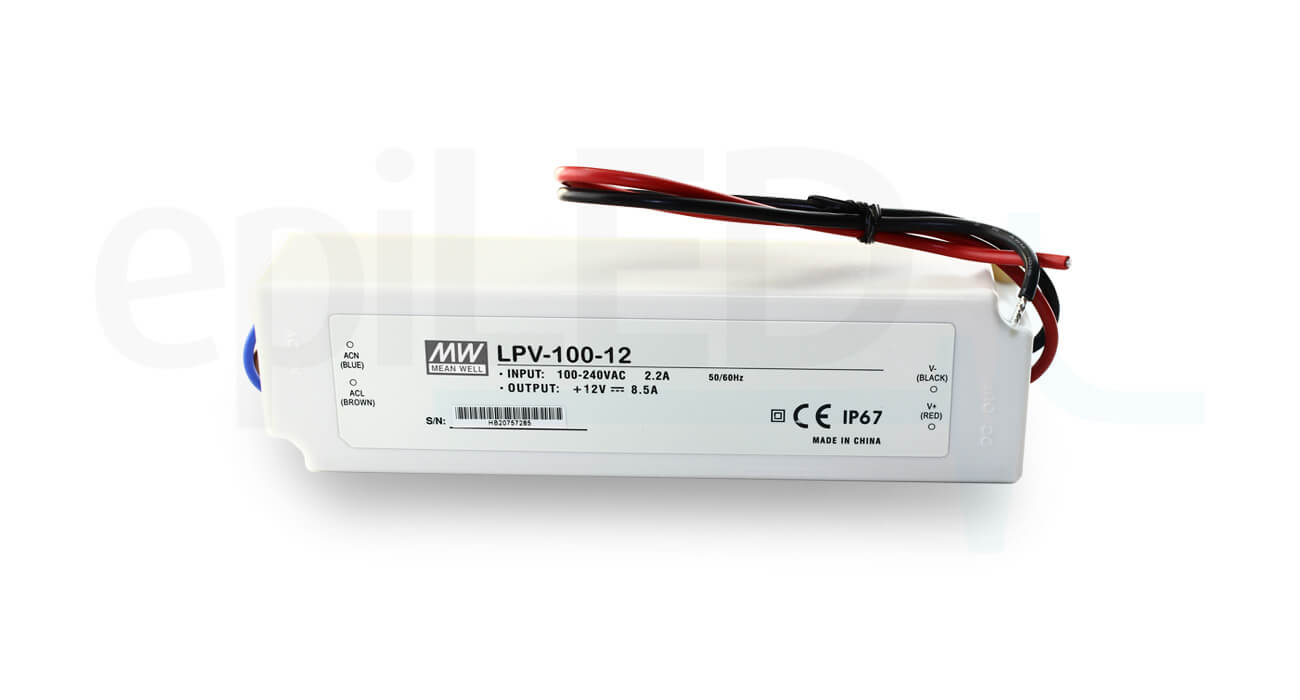

Mean Well LPV-100

Power Supply Mean Well logo Rated Power Output Voltage Rated Power Output Voltage Rated Power Output Voltage Warranty

Mean Well LPV-100

FEATURES

  • protections: short circuit / over load / over voltage
  • univeral AC input / full range
  • withstand 300 V AC surge input for 5 seconds
  • fully encapsulated with IP67 level (Note.9)
  • 100% full load burn-in test
  • class 2 power unit / no FG
  • pass LPS
  • cooling by free air convection
  • suitable for LED lighting and moving sign application
  • high reliabity / low cost
  • 3 years warranty

TECHNICAL SPECIFICATIONS

Output Voltage

5 V DC

12 V DC

24 V DC

Rated Current

12 A

8.5 A

4.2 A

Current Range

0 ~ 12 A

0 ~ 8.5 A

0 ~ 4.2 A

Rated Power

60 W

102 W

100.8 W

Output Voltage Tolerance

± 8.0%

± 5.0%

Input Voltage Range

90 ~ 264 V AC | 127 ~ 370 V DC

Frequency Range

47 ~ 63 Hz

Efficienty

80%

85%

88%

AC Input Current

2.2 A / 115 V AC | 1.2 A / 230 V AC

Protection

Short circuit | Over load | Over voltage

Working temperature

-25°C ÷ +70°C

Working humidity

20 ~ 90% RH non-condensing

Safety & EMC

UL8750, CSA C22.2 No 250.13-12, UL879, CSA C22.2 No.207-M89, IP67 approved. Design refer to EN60950-1

Dimension

191 x 63 x 37.5 mm

Weight

0.74 kg
