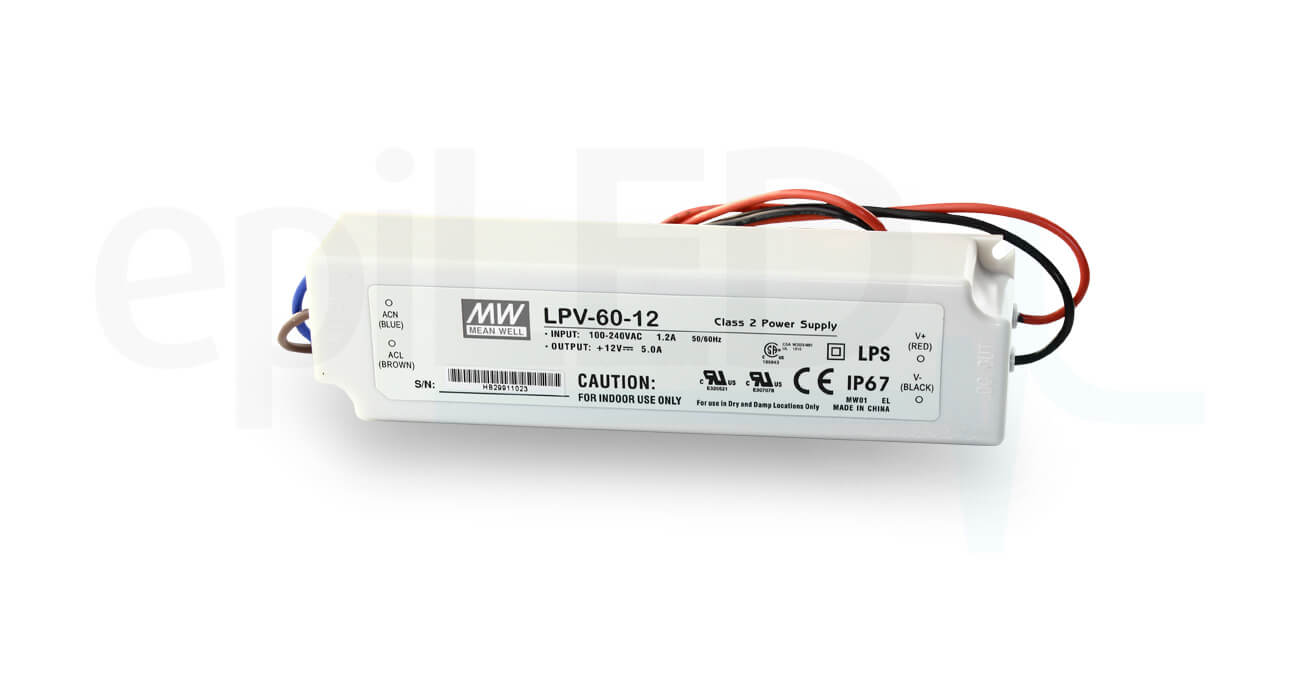

Mean Well LPV-60

Power Supply Mean Well logo Rated Power Output Voltage Output Voltage Output Voltage Warranty

Mean Well LPV-60

FEATURES

  • protections: short circuit / over load / over voltage
  • univeral AC input / full range
  • withstand 300 V AC surge input for 5 seconds
  • fully encapsulated with IP67 level (Note.9)
  • 100% full load burn-in test
  • class 2 power unit / no FG
  • pass LPS
  • cooling by free air convection
  • suitable for LED lighting and moving sign application
  • high reliabity / low cost
  • 3 years warranty

TECHNICAL SPECIFICATIONS

Output Voltage

5 V DC

12 V DC

24 V DC

Rated Current

8 A

5 A

2.5 A

Current Range

0 ~ 8 A

0 ~ 5 A

0 ~ 2.5 A

Rated Power

40 W

60 W

Output Voltage Tolerance

± 8.0%

± 5.0%

Input Voltage Range

90 ~ 264 V AC | 127 ~ 370 V DC

Frequency Range

47 ~ 63 Hz

Efficienty

76%

83%

86%

AC Input Current

1.2 A / 115 V AC | 1 A / 230 V AC

Protection

Short circuit | Over load | Over voltage

Working temperature

-30°C ÷ +70°C

Working humidity

20 ~ 90% RH non-condensing

Safety & EMC

UL879*, UL1310*, CSA C22.2 No. 207-M89*, CAN/CSA C22.2 No. 223-M91*, IP67, IEC60950-1:2005+A2:2013 approved; design refer to TUV EN60950-1

Dimension

162.5 x 42.5 x 32 mm

Weight

0.4 kg
