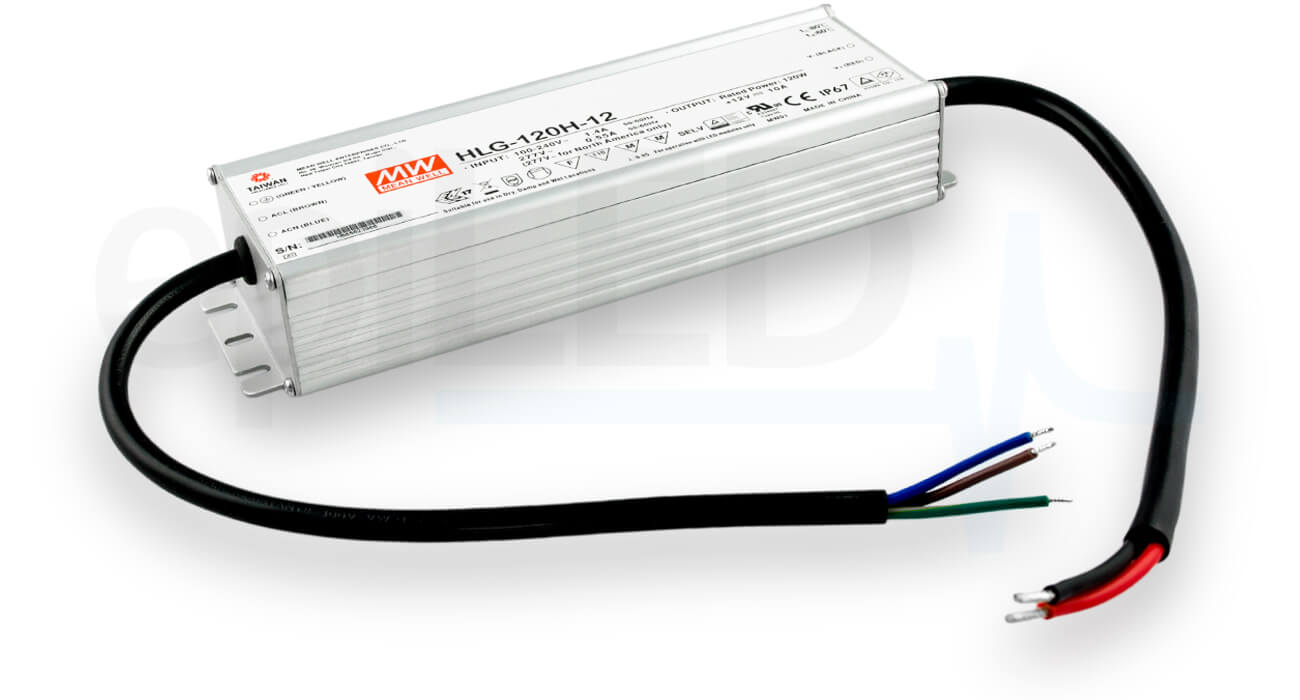

Mean Well HLG-120H

FEATURES

protections: short circuit / over current / over voltage / over temperature

univeral AC input / full range (up to 305 V AC)

OCP point adjustable through output cable or internal potentiometer

built-in active PFC function

fanless design, cooling by free air convection

withstand 5G vibration test

meet 4kV surge immunity level (IEC61000-4-5)

built-in constant current limiting circuit

suitable for general industrial applications at high/low temperature, high dust, high moisture, high vibratio

dedicated for harsh environment

7 years warranty

TECHNICAL SPECIFICATIONS

Output Voltage	12 V DC
Rated Current	10 A
Current Range	5 ~ 10 A
Rated Power	120 W
Output Voltage Tolerance	± 2.5%
Input Voltage Range	90 ~ 305 V AC \| 127 ~ 431 V DC
Frequency Range	47 ~ 63 Hz
Efficienty	92%
AC Input Current	1.4 A / 115 V AC \| 0.6 A / 230 V AC \| 0.55 A / 277 V AC
Protection	Short circuit \| Over current \| Over voltage \| Over temperature
Working temperature	-40°C ÷ +80°C
Working humidity	20 ~ 95% RH non-condensing
Safety & EMC	UL8750(type”HL”), CSA C22.2 No. 250.0-08; TUV EN61347-1, EN61347-2-13, IP65, J61347-1, J61347-2-13, UL60950-1, TUV EN60950-1
Dimension	220 x 68 x 38.8 mm
Weight	1.12 kg

DOWNLOAD

DATA SHEET
