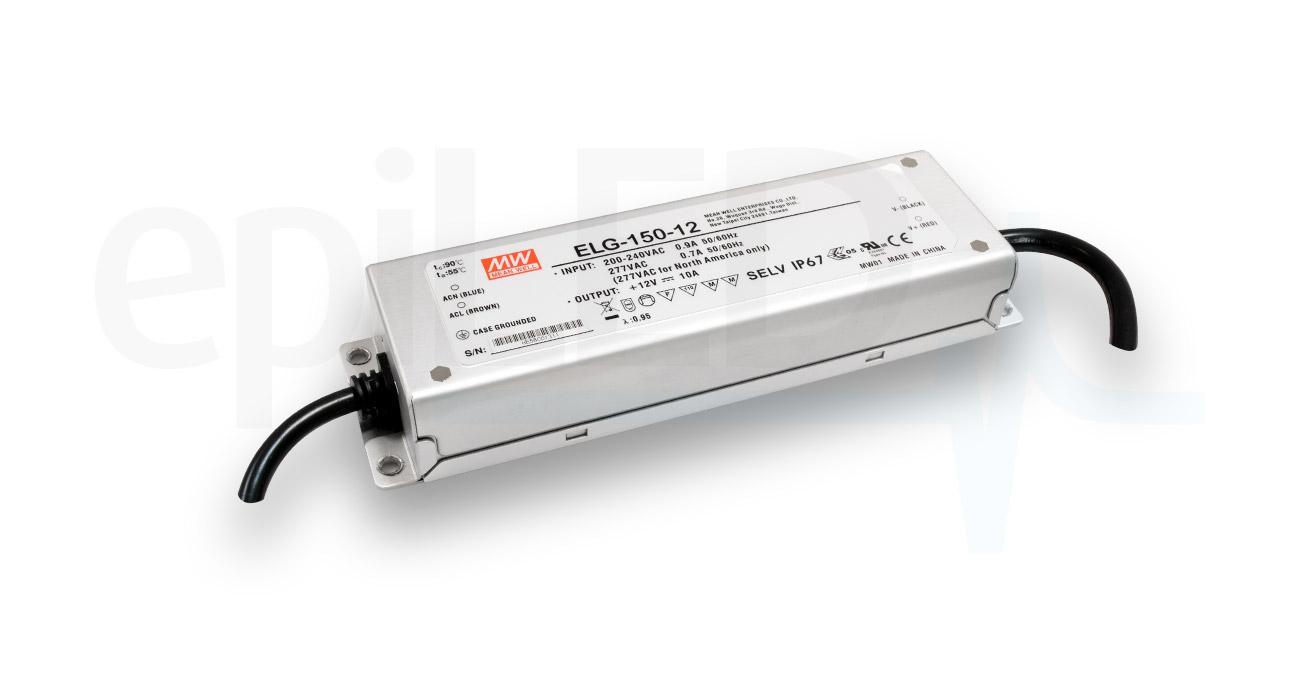

Mean Well ELG-150

FEATURES

protections: short circuit / over current / over voltage / over temperature

grounded housing

built-in active PFC function

cooling by free air convection

built-in 3 in 1 dimming function (0~10Vdc or 10V PWM signal or resistance) for B-Type

comply with harmonic current limit per EN61000-3-2 Class C (~50% load)

meet 6kV surge immunity level (EN61000-4-5)

type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries

suitable for LED street lighting and outdoor LED lighting

5 years warranty

TECHNICAL SPECIFICATIONS

Output Voltage	12 V DC
Rated Current	10 A (11 A for ELG-150-12APL)
Current Range	5 ~ 10 A
Rated Power	100 W (132 W for ELG-150-12APL)
Output Voltage Tolerance	± 3.0%
Input Voltage Range	180 ~ 295 V AC \| 255 ~ 417 V DC
Frequency Range	47 ~ 63 Hz
Efficienty	88%
AC Input Current	0.9 A / 230 V AC \| 0.7 A / 277 V AC
Protection	Short circuit \| Over current \| Over voltage \| Over temperature
Working temperature	-40°C ÷ +90°C
Working humidity	20 ~ 95% RH non-condensing
Safety & EMC	UL8750(type ”HL”), EN61347-1, EN61347-2-13, EN62384,IP67
Dimension	219 x 63 x 35 mm
Weight	0.88 kg
