RGBW-60
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATION
|
Input voltage |
12V DC | 24V DC |
|
Nominal power usage |
14 W/m |
|
Max power section |
5 m |
|
Colour rendering index |
≤80 |
|
Beam angle |
120° |
|
Dimmable with PWM controller |
YES |
|
Szerokość taśmy |
10 mm |
|
Strip width |
12V: 5 cm | 24V: 10 cm |
|
Reel length |
5 m |
|
Type of diode |
4in1 SMD5050 |
|
Density |
60 LED/m |
|
PCB |
2 oz |
|
Installation |
double-sided adhesive tape + mounting glue |
|
Lifespan |
~50000 hours |
|
Working temperature |
-20°C ÷ +40°C |
|
IP rating |
IP20 |
|
Compliance with standards |
CE / RoHS / WEEE |
|
Warranty |
2 years |
POSSIBLE COLOURS
|
Light colour |
R/G/B wavelengths [nm] + CCT [K] |
Luminous flux [lm/m] |
Luminous efficacy [lm/W] |
Energy class |
|---|---|---|---|---|
|
WW1-12V |
λ - 621 / 525 / 464 + 2979 |
539 |
48 |
G |
|
NW1-12V |
λ - 621 / 525 / 464 + 4070 |
539 |
48 |
G |
|
WW1-24V |
λ - 621 / 525 / 464 + 2979 |
539 |
48 |
G |
|
NW1-24V |
λ - 621 / 525 / 464 + 4070 |
539 |
48 |
G |
|
WH1-24V |
λ - 621 / 525 / 464 + 6256 |
539 |
48 |
G |
Ask our sales team for details of available colours.

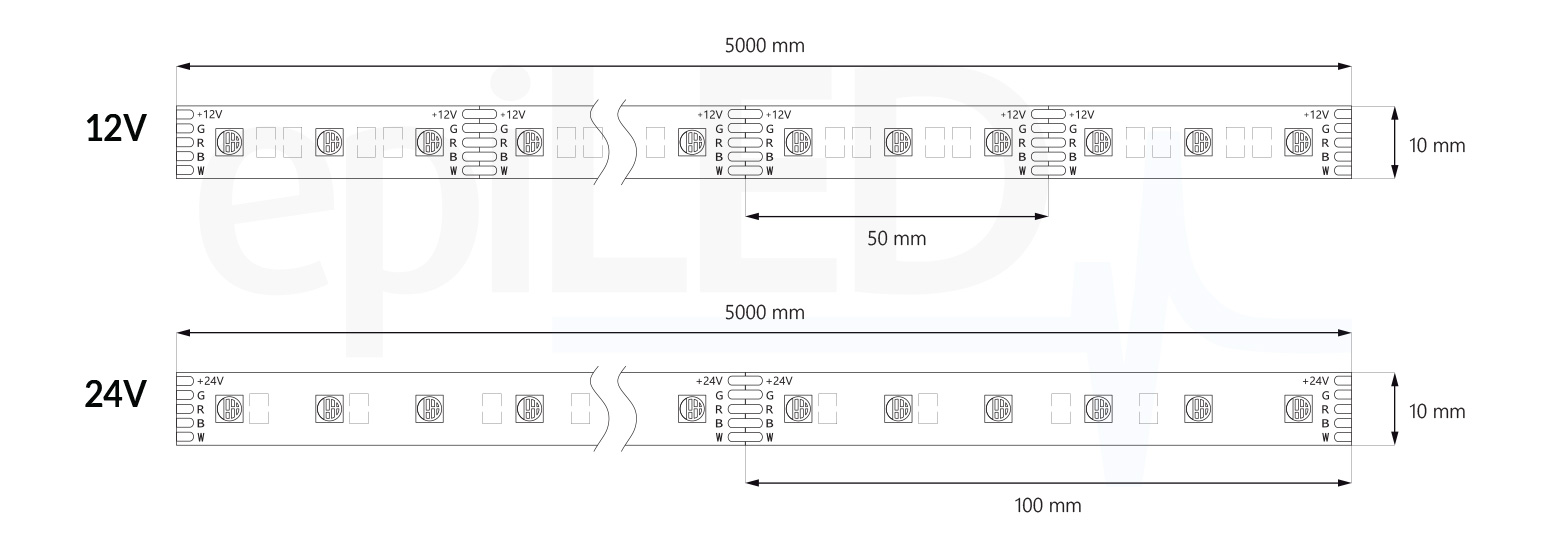

DIMENSIONS

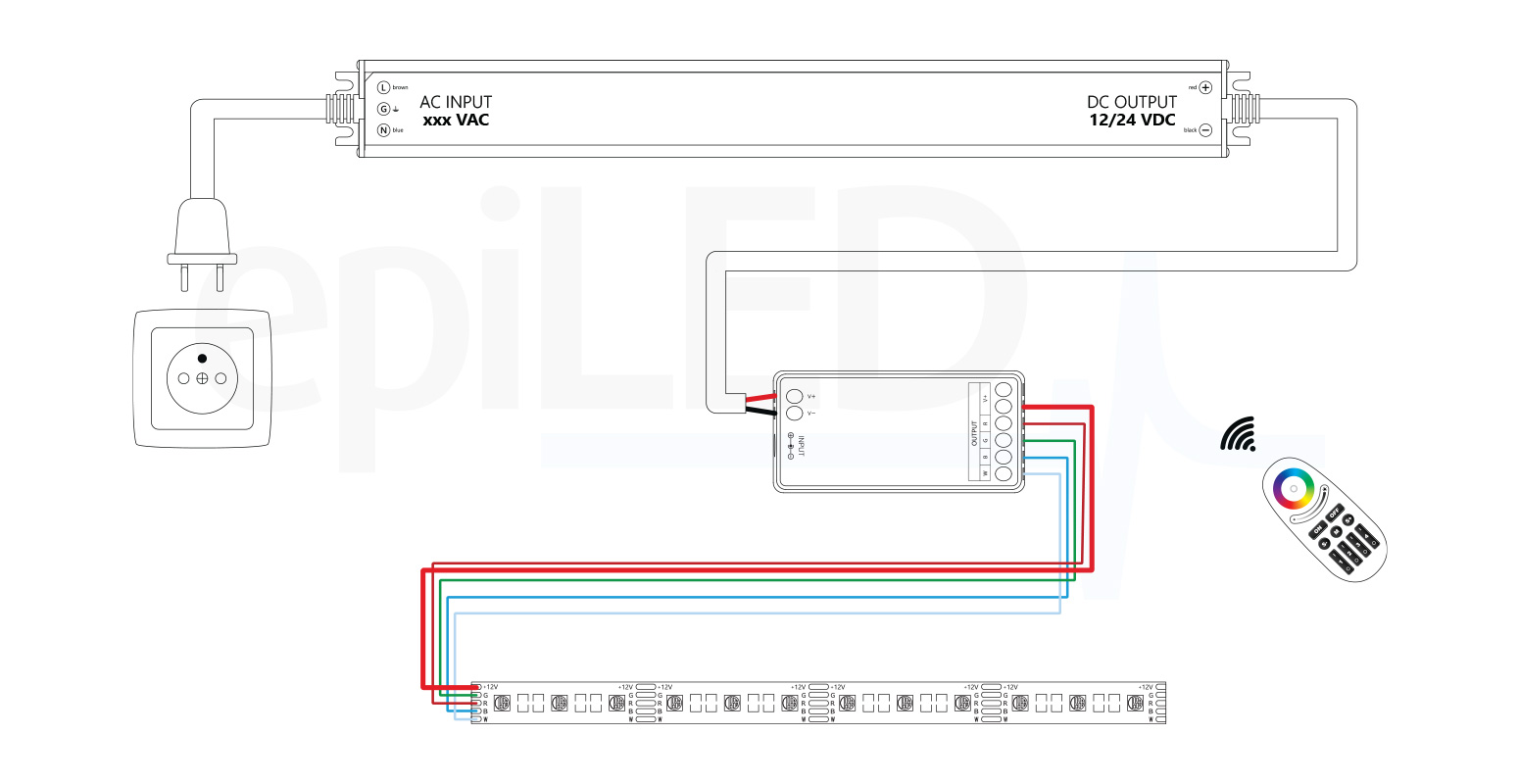

CONNECTION DIAGRAM
