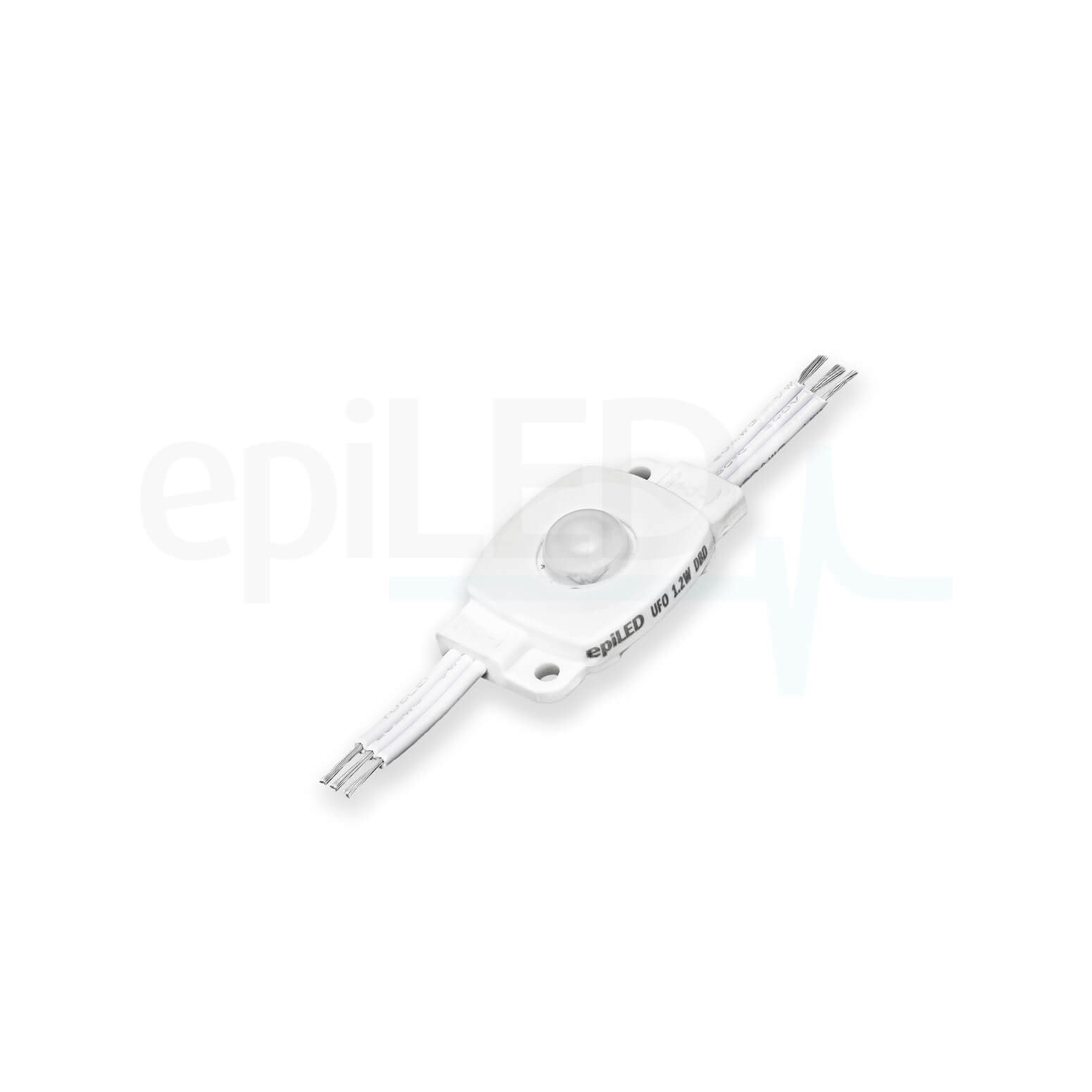

Ufo DBD
for 5-15 cm
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATIONS
|
Nominal power usage per board |
1,2W |
|
Beam angle |
160° |
|
Current stabilization |
YES |
|
Dimmable |
YES |
|
Input voltage |
24V DC |
|
Module dimensions (L x W x H) |
34 x 22.8 x 10.4 mm |
|
Cable length |
41 ± 1 mm |
|
Maximum spacing (CC distance) |
75 ± 5 mm |
|
No. of modules per chain |
50 pcs |
|
Lifespan |
~50000 hours |
|
Operating temperature |
-25°C ÷ +55°C |
|
Storage temperature |
-40°C ÷ +65°C |
|
Colour rendering index |
≥60 |
|
IP rating |
IP67 |
|
Compliance with |
CE / UKCA / RoHS / WEEE / UL |
|
Warranty |
5 years |
COLOURS
|
Abbreviation |
Light colour |
Luminous flux [lm/pc] |
Wavelength [nm] |
|---|---|---|---|
|
R |
red |
13 |
625-635 |
|
G |
green |
20 |
520-530 |
|
B |
blue |
5.9 |
460-470 |

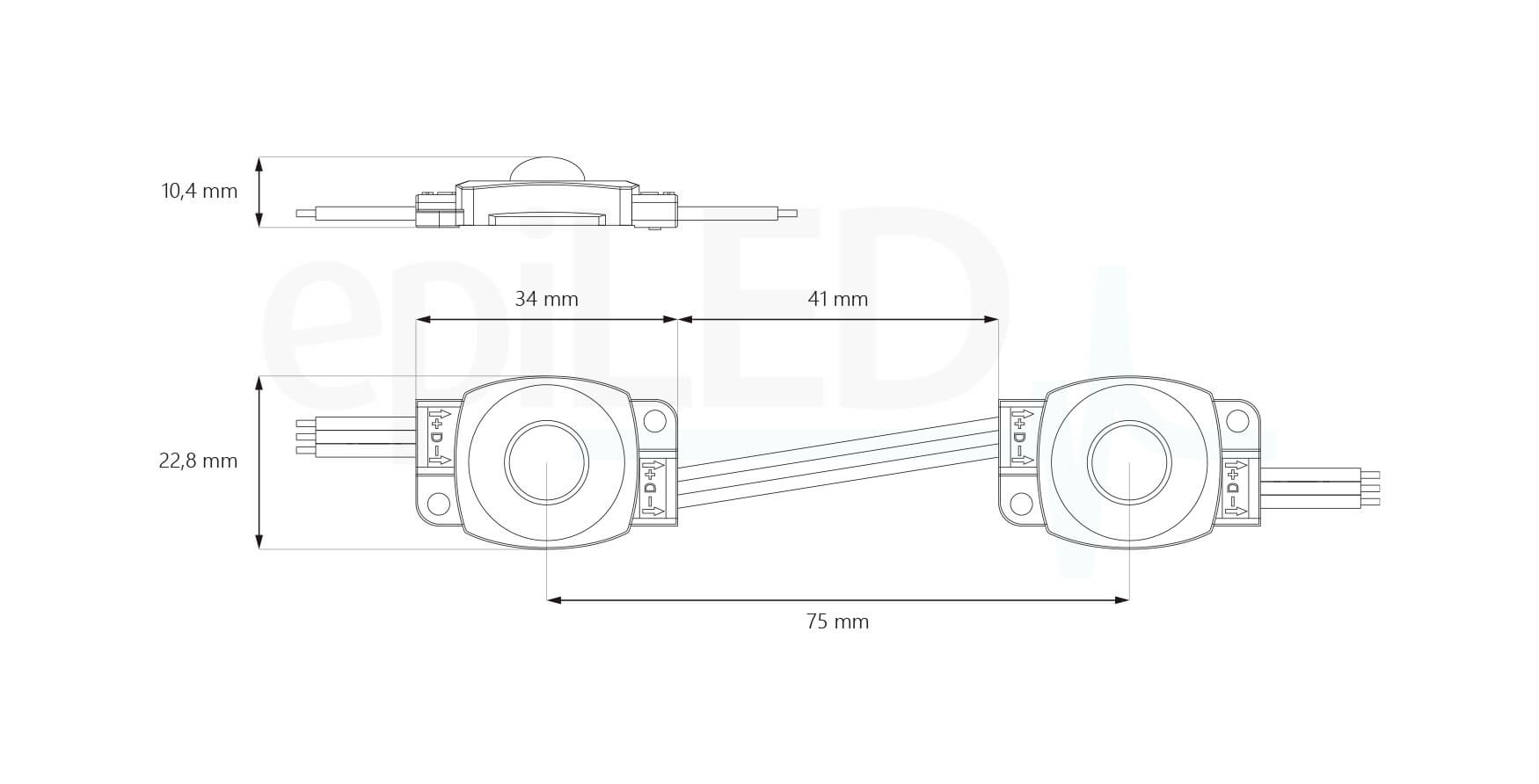

DIMENSIONS

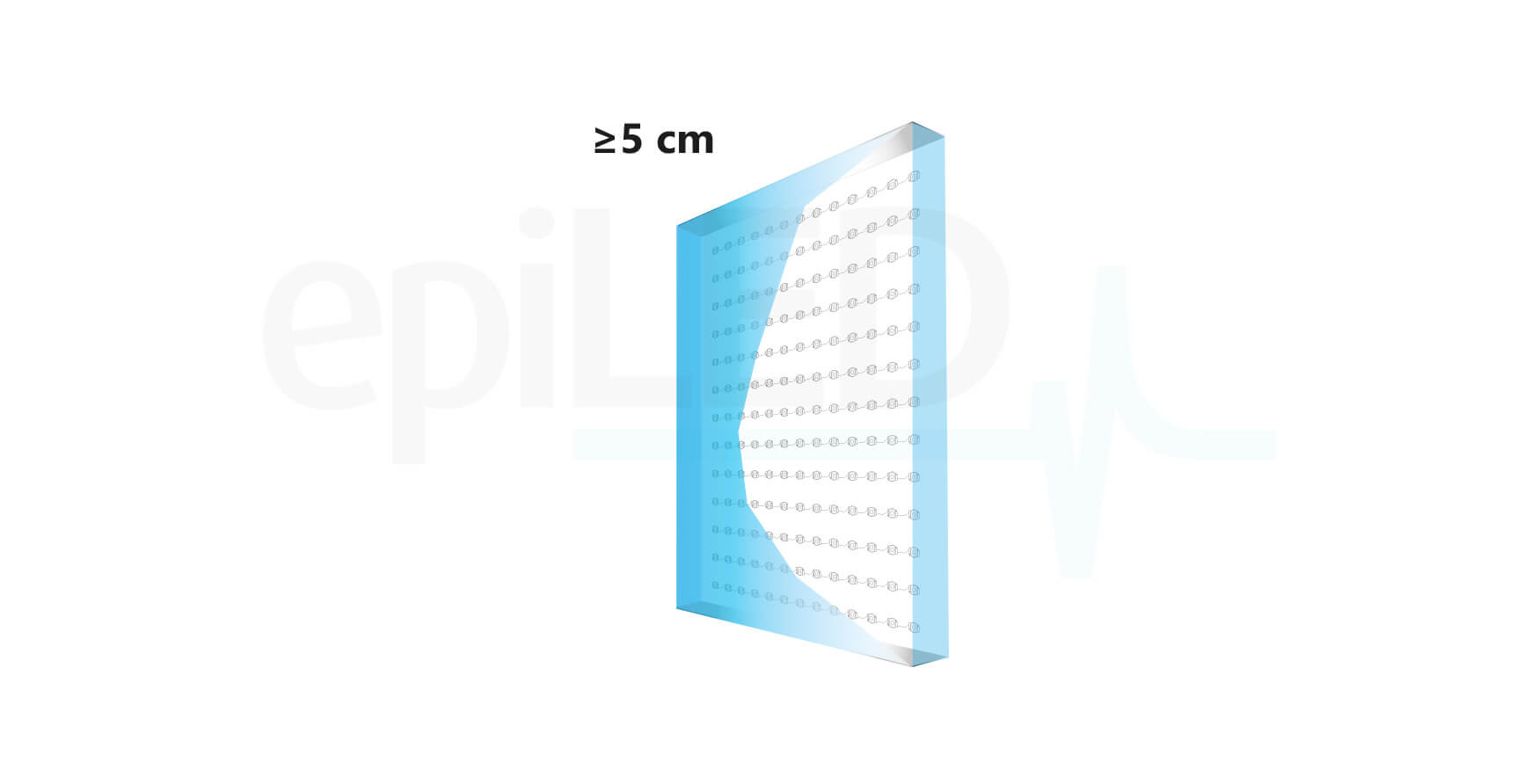

APPLICATION
best for small channel letters with a depth of 3-9 cm
|
Area |
1 m2 |
0,04 m2 |
|---|---|---|
|
No. of modules |
9 pcs |
10 pcs |
|
Power usage |
5.85W |
6.5W |
UWAGA: dokładna ilość listew uzależniona jest od użytych materiałów i efektu jaki chcemy osiągnąć.
