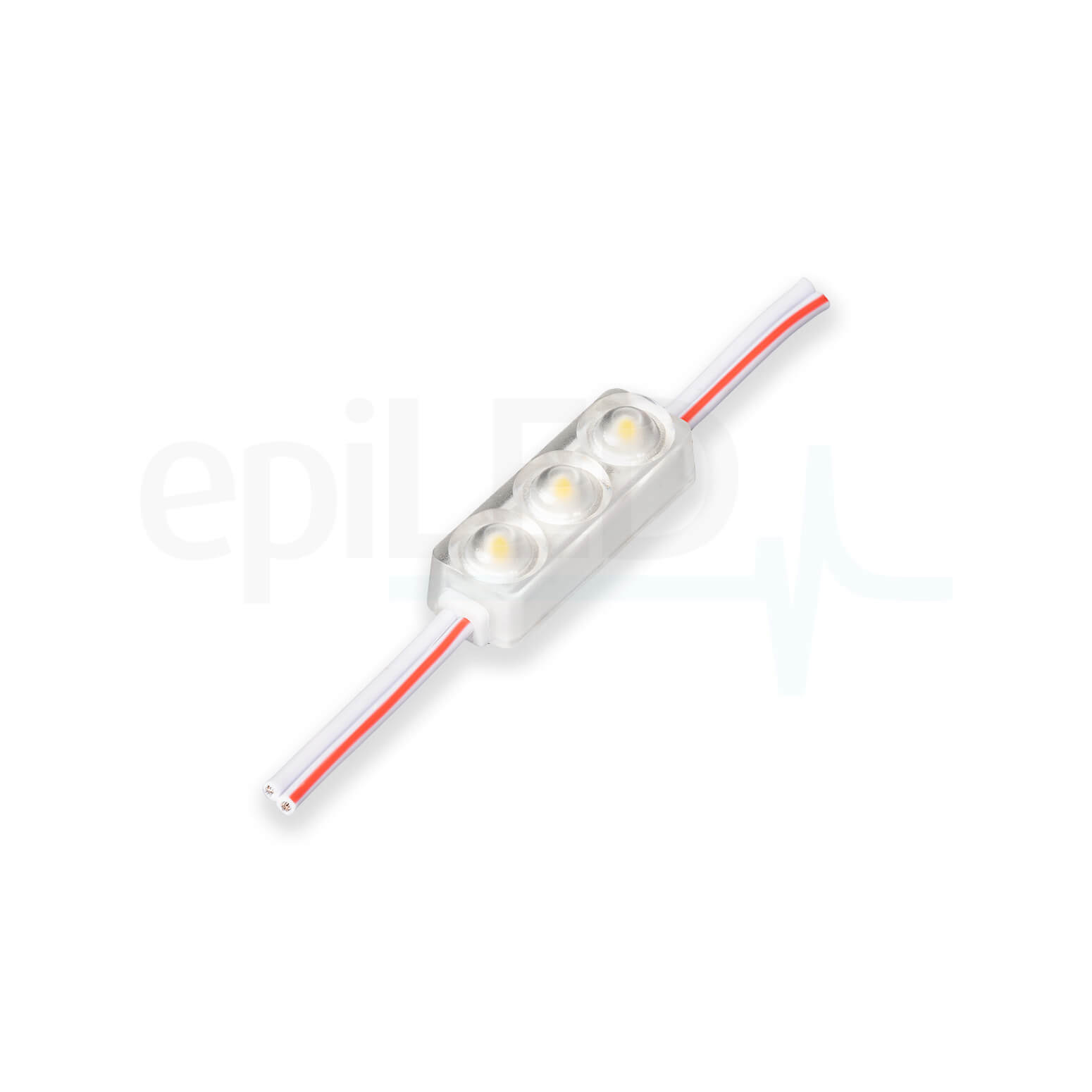

Tini
for 3-9 cm
 |
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATIONS
|
Nominal power usage per board |
0.36W [PW / WH] | 0.48W [GR] |
|
Beam angle |
160° |
|
Current stabilization |
NO |
|
Dimmable |
YES |
|
Input voltage |
12V DC |
|
Module dimensions (L x W x H) |
29 x 9.7 x 8.2 mm |
|
Cable length |
50 ± 1 mm |
|
Maximum spacing (CC distance) |
80 ± 5 mm |
|
No. of modules per chain |
30 pcs [PW / WH] | 50 pcs [GR] |
|
Lifespan |
~50000 hours |
|
Operating temperature |
-25°C ÷ +50°C |
|
Storage temperature |
-40°C ÷ +65°C |
|
Colour rendering index |
≥82 |
|
IP rating |
IP65 |
|
Compliance with |
CE / UKCA / RoHS / WEEE / UL |
|
Warranty |
5 years |
COLOURS
|
Light colour |
CCT [K] |
Luminous flux [lm/pc] |
Luminous efficacy [lm/W] |
Energy class |
|---|---|---|---|---|
|
PW |
4800-5200 |
64.6 |
173.74 |
C |
|
WH |
6500-7000 |
67.1 |
180 |
C |
|
GR |
- |
30 |
62.5 |
- |

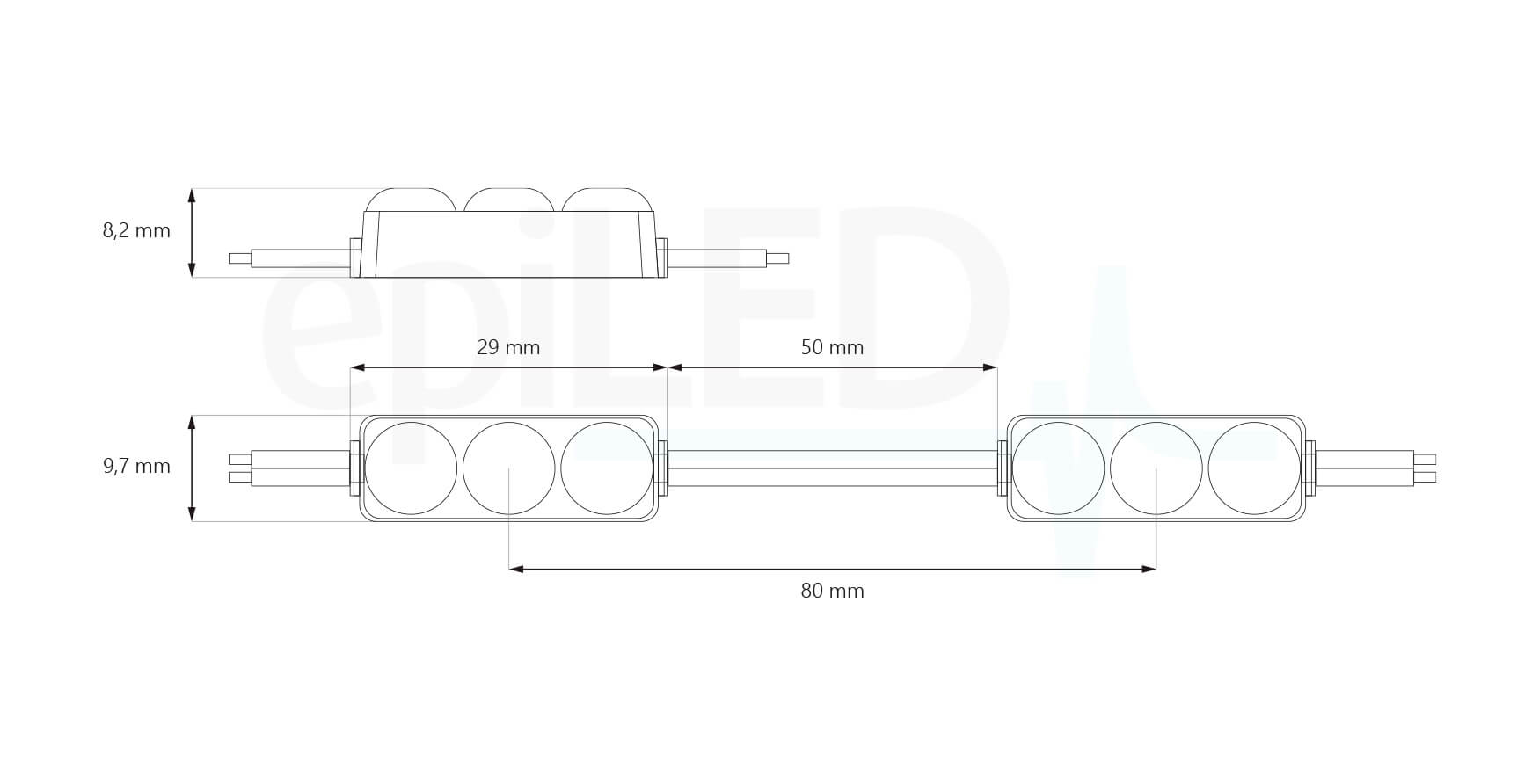

DIMENSIONS

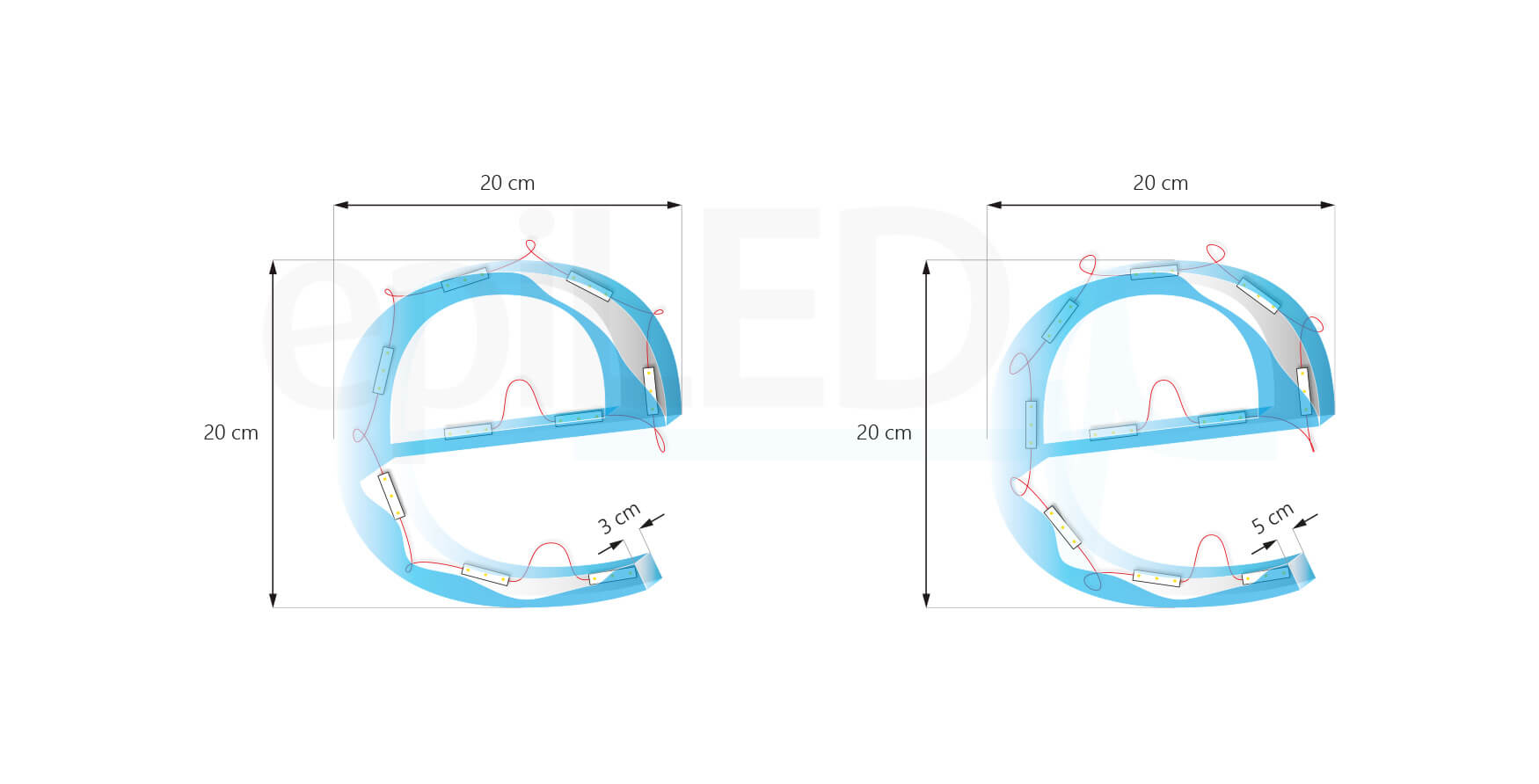

APPLICATION
best for small channel letters with a depth of 3-9 cm
|
Area |
0,04 m2 |
0,04 m2 |
|---|---|---|
|
No. of modules |
9 pcs |
10 pcs |
|
Lumen output |
581 lm (PW) | 604 lm (WH) | 270 lm (GR) |
646 lm (PW) | 671 lm (WH) | 300 lm (GR) |
|
Power usage |
3.24W (PW/ WH) | 4.32W (GR) |
3.6W (PW/ WH) | 4.8W (GR) |
UWAGA: dokładna ilość listew uzależniona jest od użytych materiałów i efektu jaki chcemy osiągnąć.
