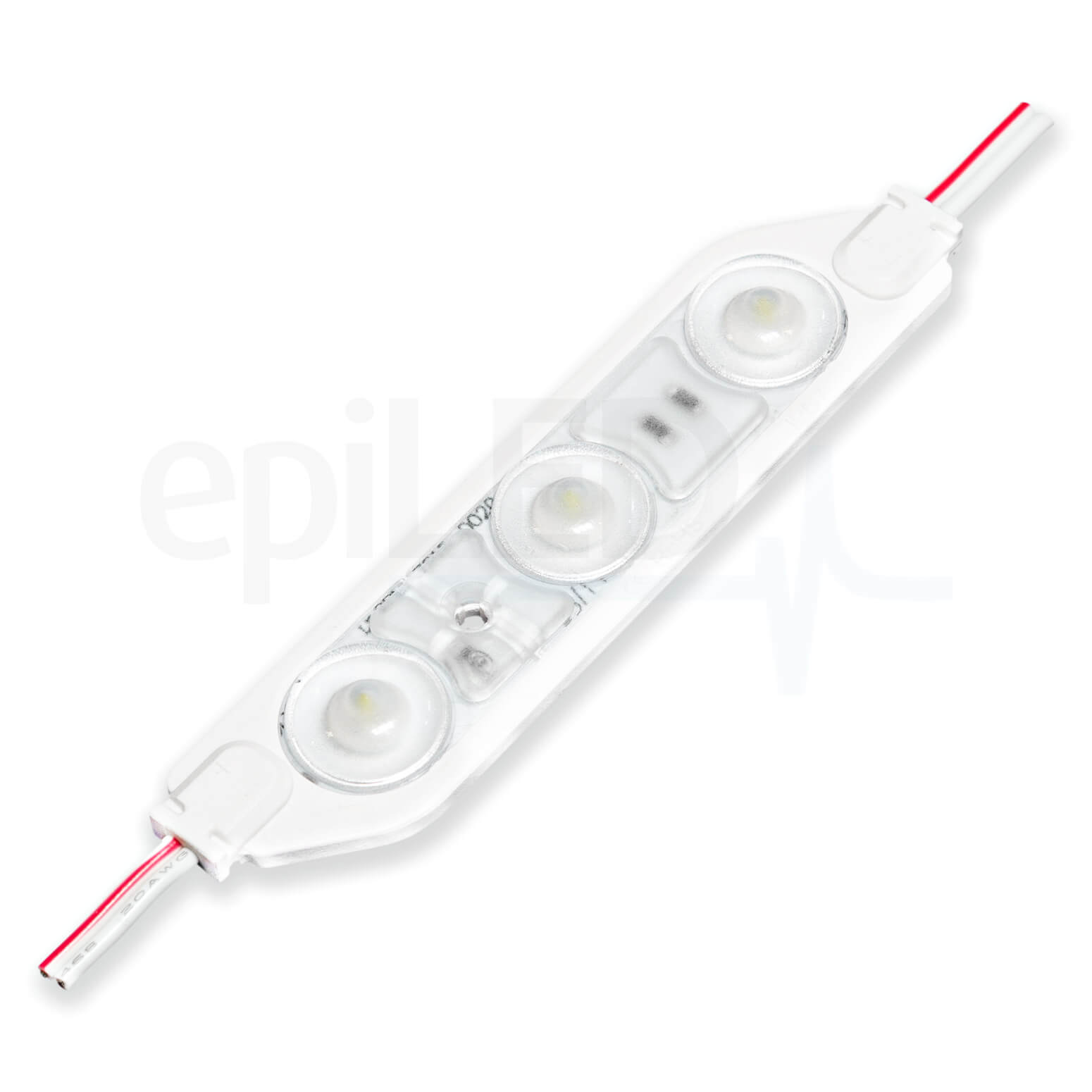

Luno 1.08W
for 6-15 cm
 |
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATIONS
|
Nominal power usage |
1.08 W |
|
Luminous Flux |
125 lm |
|
Beam angle |
165° |
|
Current stabilization |
YES |
|
Input Voltage |
12 V DC |
|
Module dimensions (L x W x D) |
86 x 19 x 6.4 mm |
|
Cable length |
100 mm ± 5 mm |
|
Module length incl. cable |
186 mm |
|
No. of modules in the chain / bag |
30 pcs / 120 pcs |
|
Lifespan |
~50 000 h |
|
Working temperature |
-20°C ÷ +50°C |
|
Color Rendering Index |
≥82 |
|
IP Rating |
IP67 |
|
Warranty |
5 years |

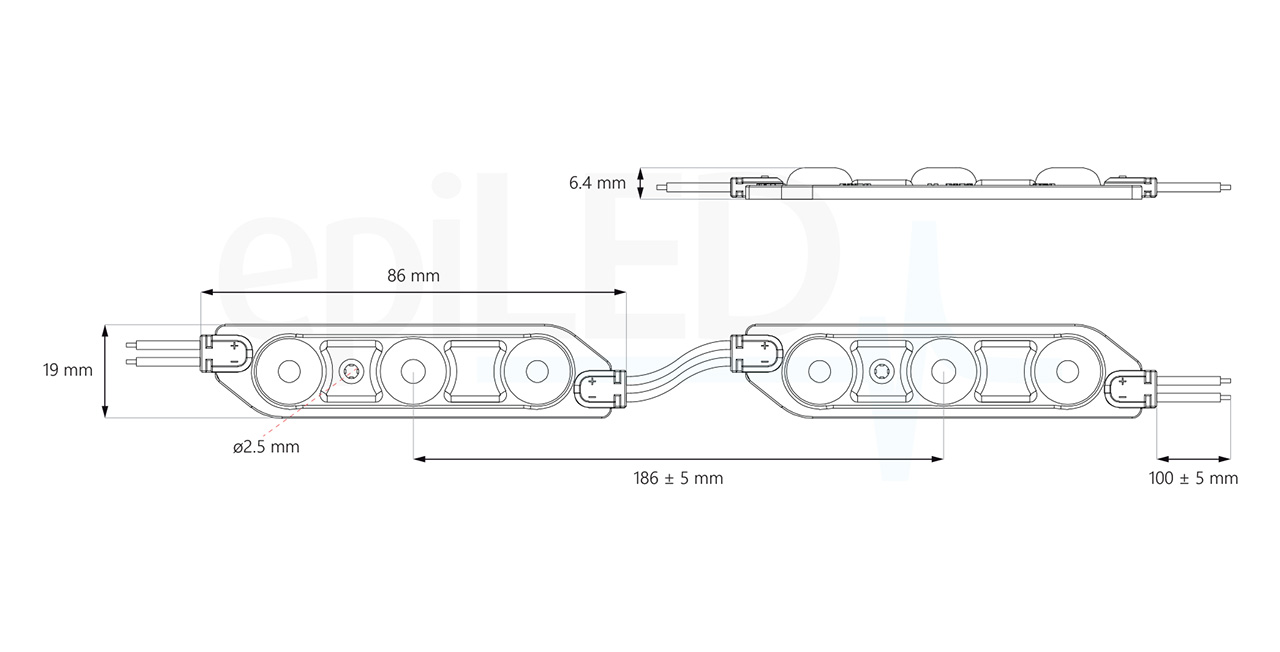

DIMENSIONS

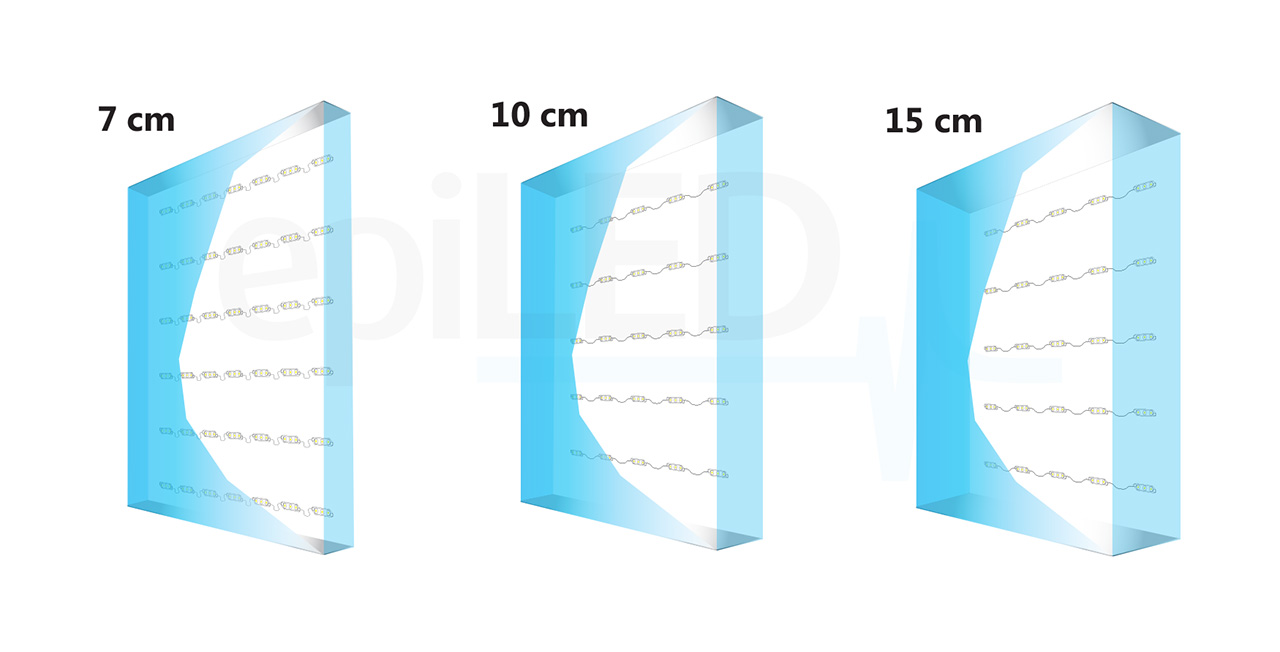

APPLICATION
best for channel letters and lightboxes with a depth of 6-15 cm
|
Depth |
7 cm |
10 cm |
15 cm |
|---|---|---|---|
|
Area |
1 m2 |
1 m2 |
1 m2 |
|
CC distance |
15 cm |
18.6 cm |
18.6 cm |
|
No. of modules |
42 pcs |
25 pcs |
25 pcs |
|
Lumen output |
5250 lm |
3125 lm |
3125 lm |
|
Power usage |
45.36 W |
27 W |
27 W |
NOTE: the exact number of modules depends on the used materials and the effect we want to achieve
