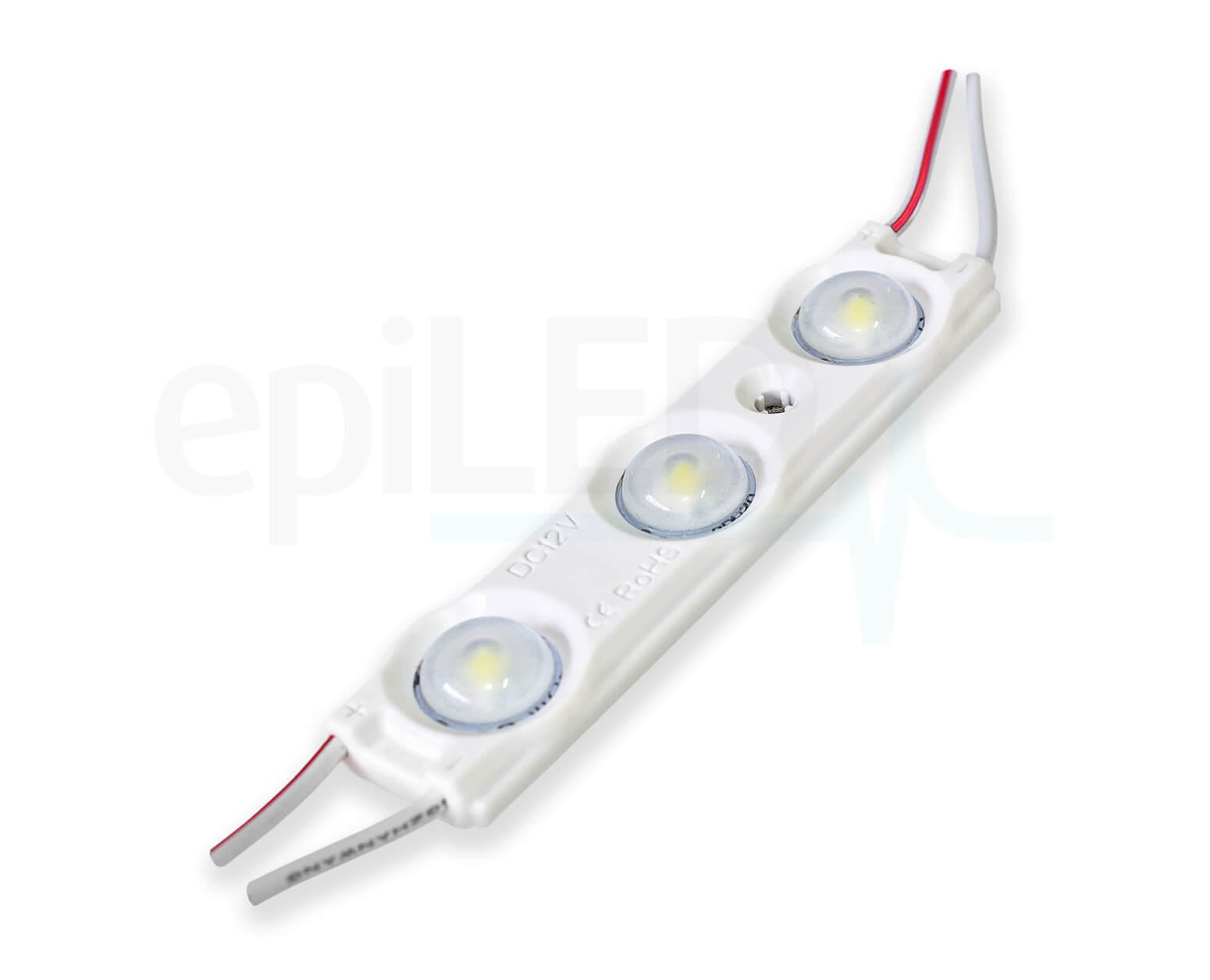

Opticor³
for 10-22 cm
 |
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATIONS
|
Nominal power usage |
1.44 W |
|
Luminous Flux |
135 lm |
|
Beam angle |
160° |
|
Current stabilization |
YES |
|
Input Voltage |
12 V DC |
|
Module dimensions (L x W x D) |
70 x 16 x 5.8 mm |
|
Cable length |
170 mm ± 5 mm |
|
Module length incl. cable |
240 mm |
|
No. of modules in the chain / bag |
30 pcs / 120 pcs |
|
Lifespan |
~50 000 h |
|
Working temperature |
-40°C ÷ +60°C |
|
Color Rendering Index |
≥82 |
|
IP Rating |
IP67 |
|
Warranty |
5 years |

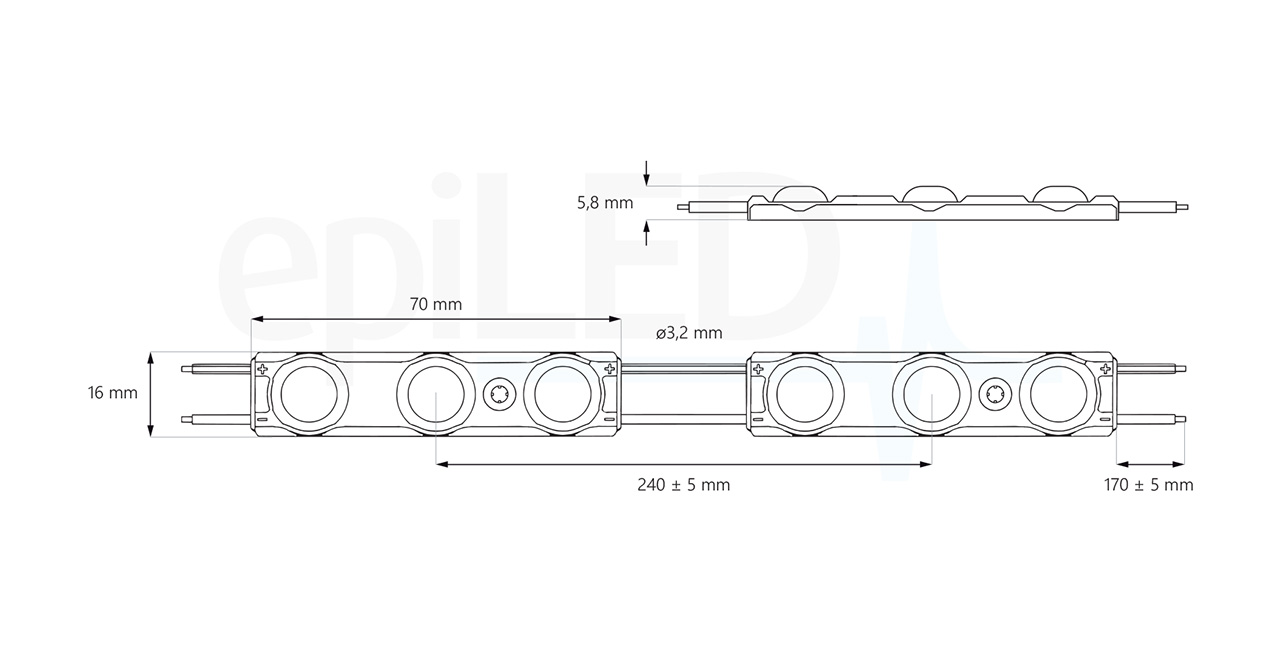

DIMENSIONS

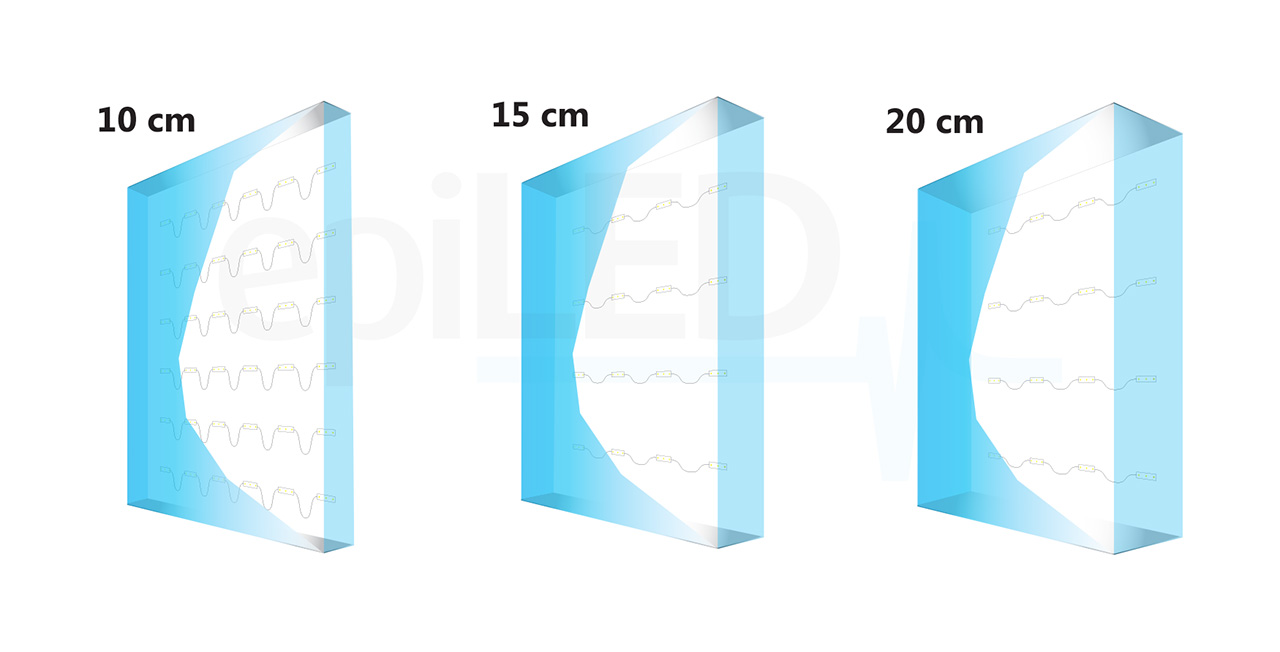

APPLICATION
best for channel letters and lightboxes with a depth of 10-22 cm
|
Depth |
10 cm |
15 cm |
20 cm |
|---|---|---|---|
|
Area |
1 m2 |
1 m2 |
1 m2 |
|
CC distance |
17 cm |
24 cm |
24 cm |
|
No. of modules |
36 pcs |
16 pcs |
16 pcs |
|
Lumen output |
4860 lm |
2160 lm |
2160 lm |
|
Power usage |
51,84 W |
23,04 W |
23,04 W |
NOTE: the exact number of modules depends on the used materials and the effect we want to achieve.
Given data refers to white colour.
