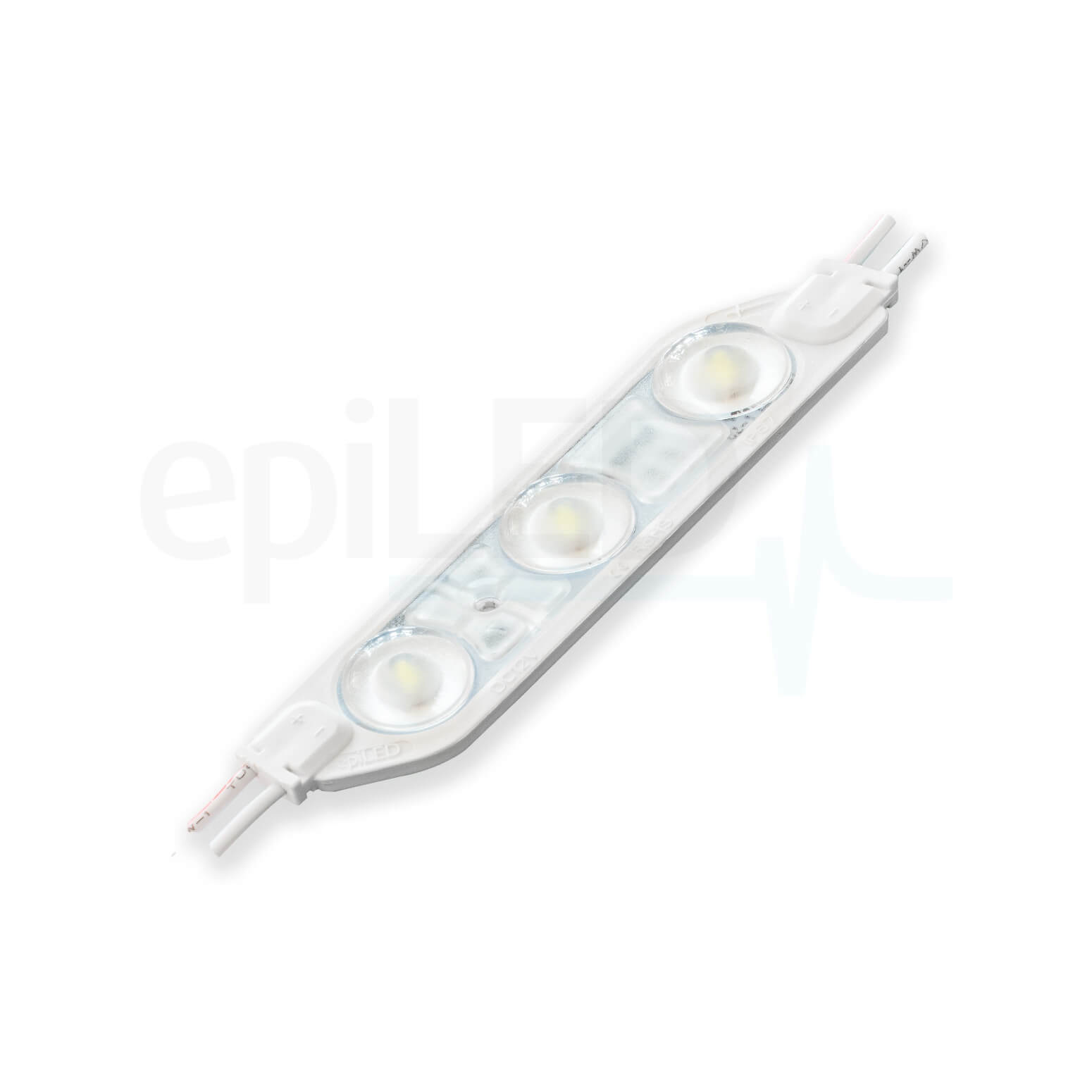

Luno 0.6W
for 3-9 cm
 |
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATIONS
|
Nominal power usage per board |
0.6W |
|
Beam angle |
165° |
|
Current stabilization |
YES |
|
Dimmable |
YES |
|
Input voltage |
12V DC |
|
Module dimensions (L x W x H) |
86 x 19 x 6.4 mm |
|
Cable length |
110 ± 1 mm |
|
Maximum spacing (CC distance) |
196 ± 5 mm |
|
No. of modules per chain |
40 pcs |
|
Lifespan |
~50000 hours |
|
Operating temperature |
-20°C ÷ +50°C |
|
Storage temperature |
-40°C ÷ +65°C |
|
Colour rendering index |
≥82 |
|
IP rating |
IP67 |
|
Compliance with |
CE / UKCA / RoHS / WEEE / UL |
|
Warranty |
5 years |
COLOURS
|
Light colour |
CCT [K] |
Luminous flux [lm/pc] |
Luminous efficacy [lm/W] |
Energy class |
|---|---|---|---|---|
|
WW |
2800-3200 |
67.2 |
112.18 |
F |
|
NW |
3800-4200 |
68 |
116.38 |
F |
|
WH |
6500-7000 |
68.4 |
116.78 |
F |

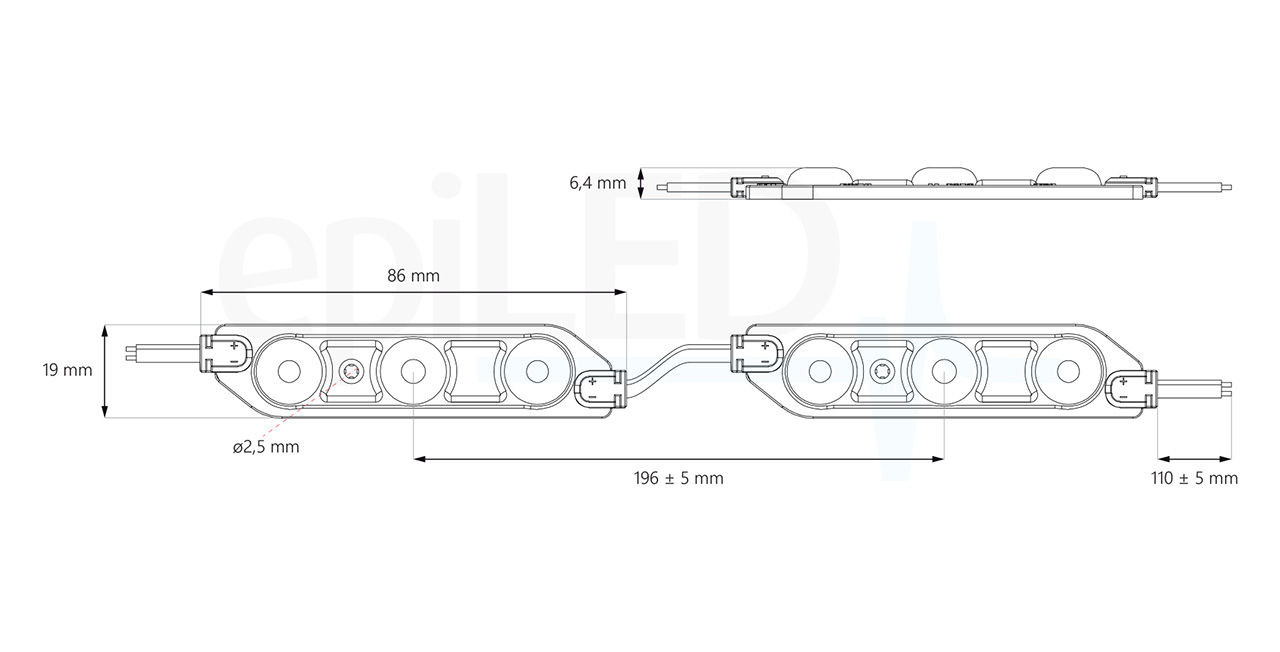

DIMENSIONS

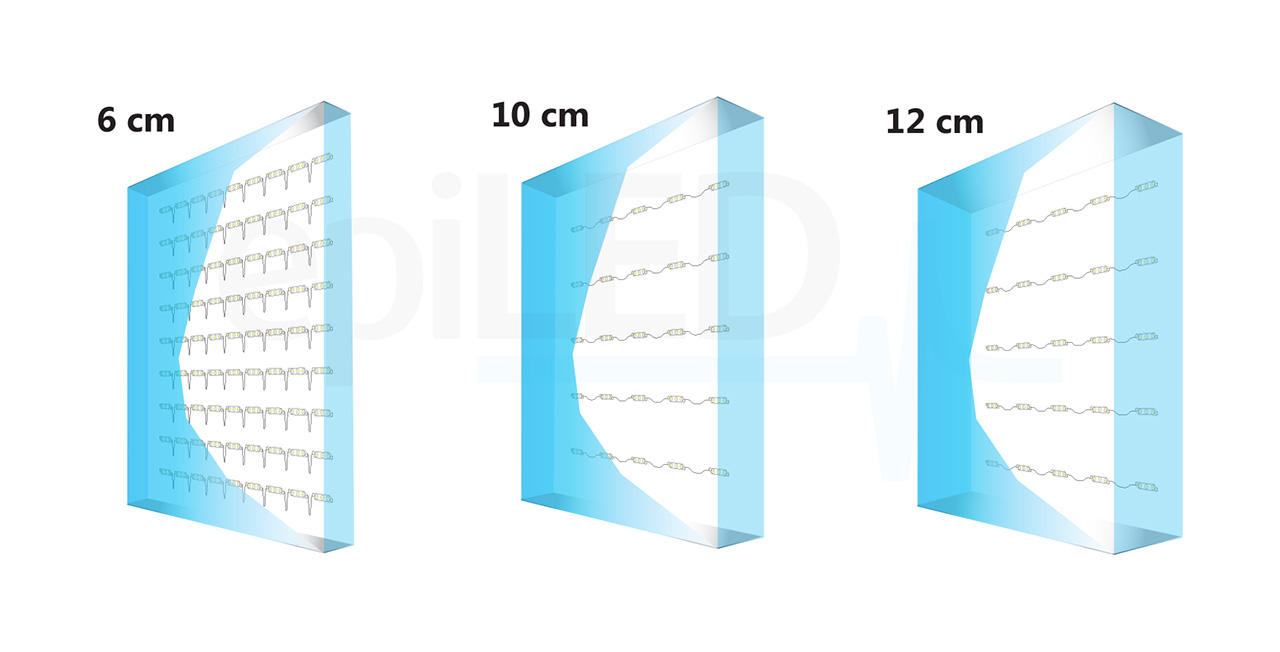

APPLICATION
best for channel letters and lightboxes with a depth of 6-15 cm
|
Depth |
7 cm |
10 cm |
15 cm |
|---|---|---|---|
|
Area |
1m2 |
1m2 |
1m2 |
|
CC distance |
15 cm |
18.6 cm |
18.6 cm |
|
No. of modules |
40 pcs |
25 pcs |
25 pcs |
|
Lumen output |
5250 lm |
3125 lm |
3125 lm |
|
Power usage |
45.36W |
27W |
27W |
NOTE: the exact number of modules depends on the used materials and the effect we want to achieve
