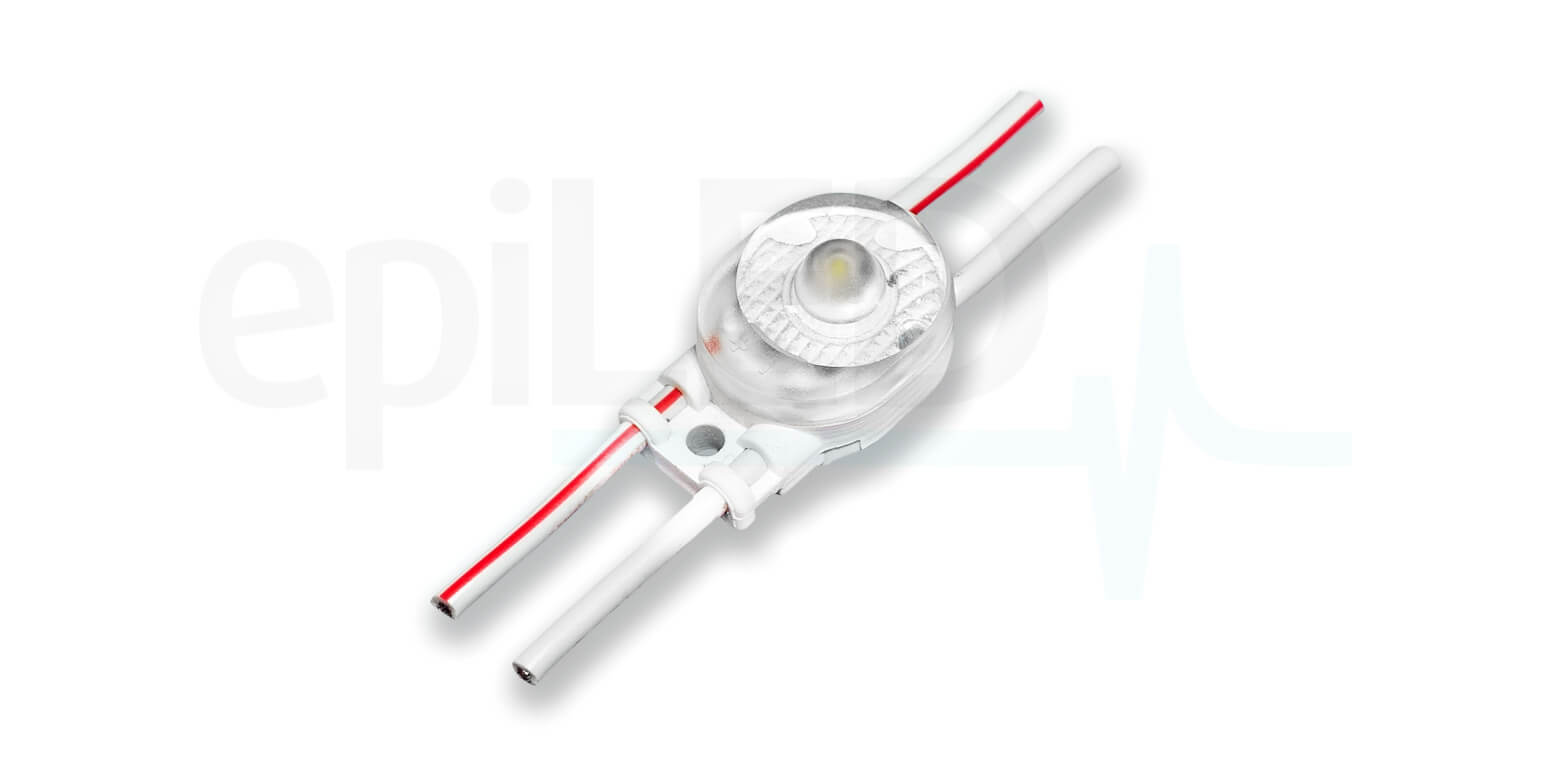

Lumiter¹ Lite
for 3-8 cm
 |
 |
 |
 |
 |
 |
 |
 |
 |
TECHNICAL SPECIFICATIONS
|
Nominal power usage |
0.24 W |
|
Luminous Flux |
37 lm |
|
Beam angle |
170° |
|
Current stabilization |
YES |
|
Input Voltage |
12 V DC |
|
Module dimensions (L x W x D) |
24.1 x 14.5 x 10.5 mm |
|
Cable length |
55 mm ± 5 mm |
|
Module length incl. cable |
80 mm |
|
No. of modules in the chain / bag |
50 pcs / 250 pcs |
|
Lifespan |
~50 000 h |
|
Working temperature |
-25°C ÷ +55°C |
|
Color Rendering Index |
≥82 |
|
IP Rating |
IP67 |
|
Warranty |
5 years |

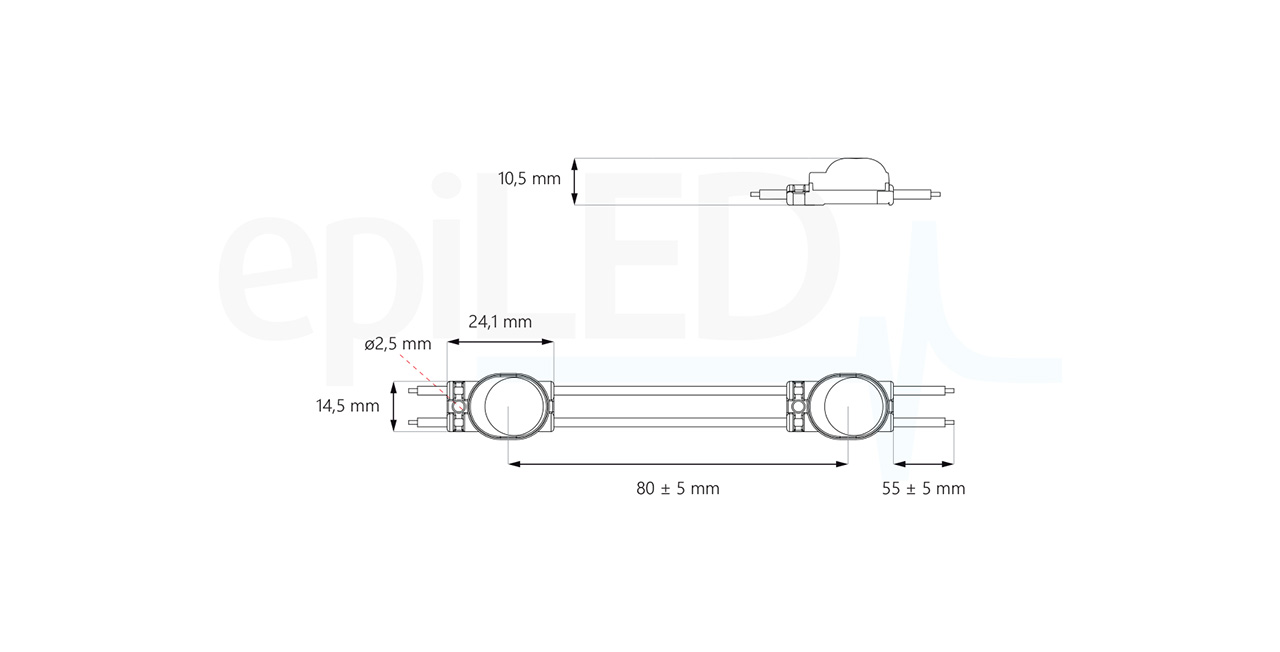

DIMENSIONS

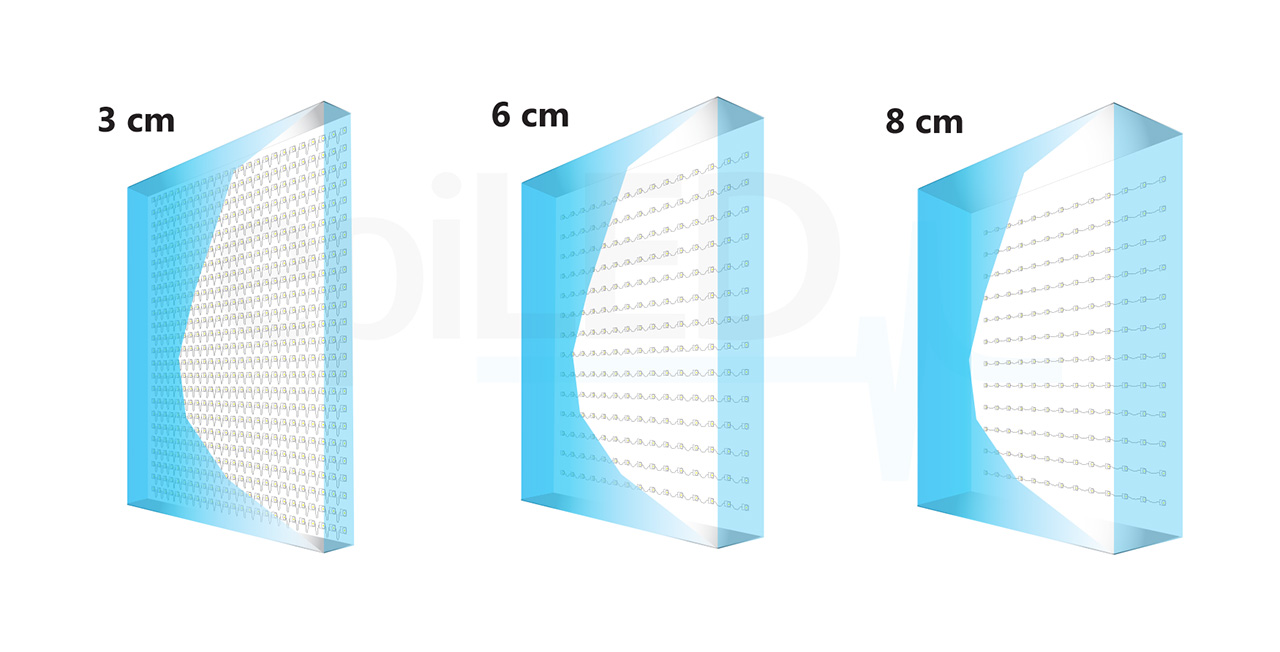

APPLICATION
best for channel letters and lightboxes with a depth of 3-8 cm
|
Depth |
3 cm |
6 cm |
8 cm |
|---|---|---|---|
|
Area |
1 m2 |
1 m2 |
1 m2 |
|
CC distance |
4 cm |
7 cm |
8 cm |
|
No. of modules |
600 pcs |
210 pcs |
156 pcs |
|
Lumen output |
2220 lm |
7770 lm |
5772 lm |
|
Power usage |
144 W |
50.4 W |
37.44 W |
NOTE: the exact number of modules depends on the used materials and the effect we want to achieve
